Compaq Professional Workstation SP750 Maintenance and Service Guide
Removing a Hard Drive from the Removable Hard Drive Cage
in Bays 1 through 3
NOTE:
The removable hard drive cage supports up to three 1.0-inch hard drives or two 1.6-inch hard
drives. Other than using different screw holes, the removal and replacement for both drives is basically
the same.
To remove a hard drive from the removable hard drive cage:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the following components:
Y
Workstation feet
Y
Side access panel
3. Disconnect the cables from the back of the hard drive.

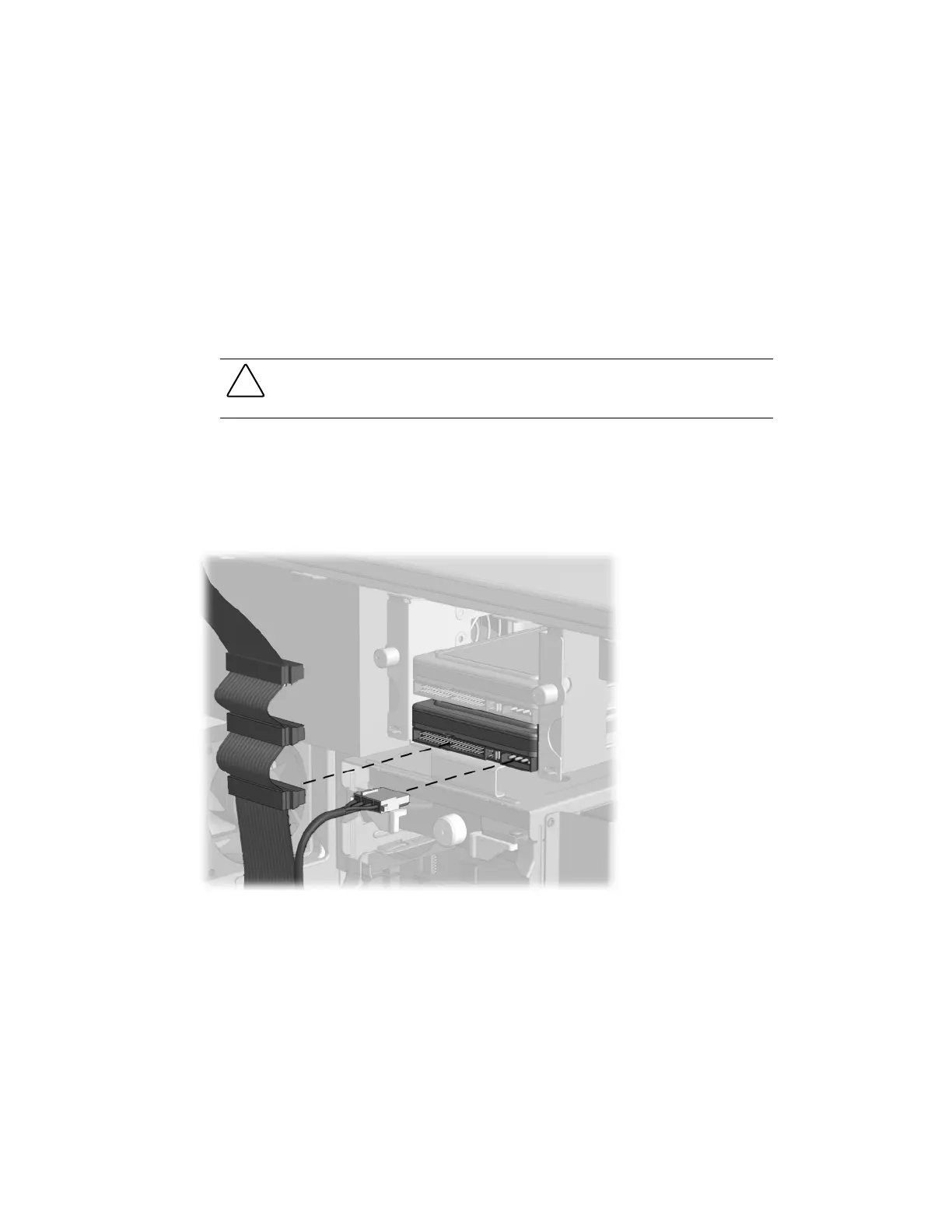

Figure 4-18. Disconnecting the cables from the back of a hard drive
