4-22
Compaq Professional Workstation SP750 Maintenance and Service Guide
Installing a Hard Drive in the Removable Hard Drive Cage
in Bays 1 through 3
NOTE:
Before installing a SCSI device, please read the “SCSI Guidelines” chapter in the
Compaq Service
Reference Guide
.
To install a hard drive in the removable hard drive cage:
1. Perform the steps in the Service Preparations section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the following components:
Y
Workstation feet
Y
Side access panel
Y
Removable hard drive cage
3. Remove four hard drive screws (top group of screws) from the side of the air plenum
located at the front of the workstation.
4. Locate the correct hard drive cage screw holes for the hard drive you are installing.

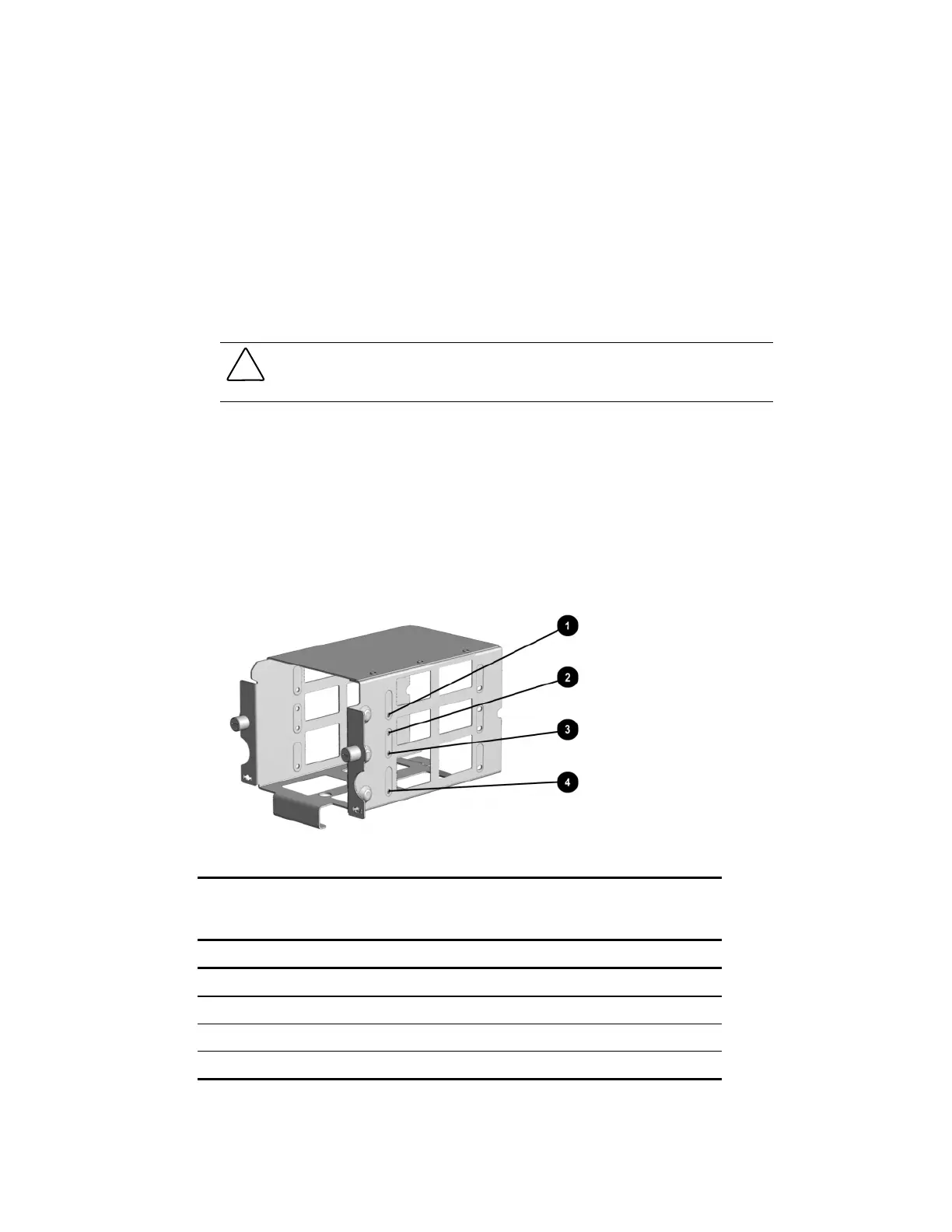

Figure 4-21. Locating the removable hard drive screw holes
Table 4-2
Hard Drive Screw Holes
Item Location
1
1.0-inch drive
2
1.6-inch drive
3
1.0-inch drive
4
1.0-inch or 1.6-inch drive
