Removal and Replacement Procedures
4-47
Card Guide
To remove the card guide:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the side access panel.
3. Remove any expansion cards from the card guide.
4. Remove the two screws attaching the card guide bracket to the air plenum.
5. Remove the four screws securing the card guide to the card guide bracket.
6. Remove the card guide.

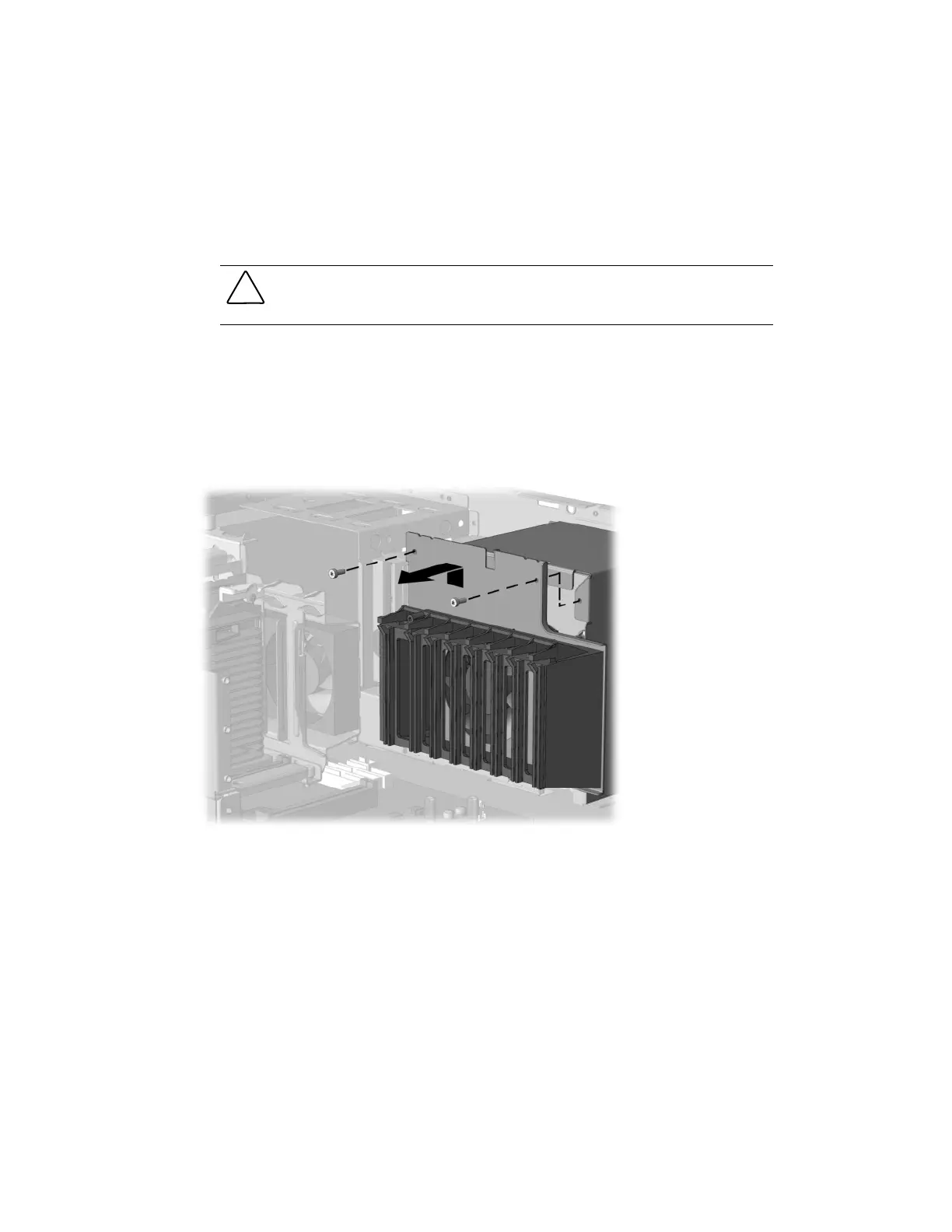

Figure 4-42. Removing the two screws attaching the card guide to the air plenum
