Removal and Replacement Procedures
4-15
Diskette Drive
IMPORTANT:
Before beginning the removal procedure, be sure there is no diskette in the drive.
To remove the diskette drive:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the following components:
Y
Side access panel
Y
Front bezel
3. Disconnect the cables from the back of the diskette drive.

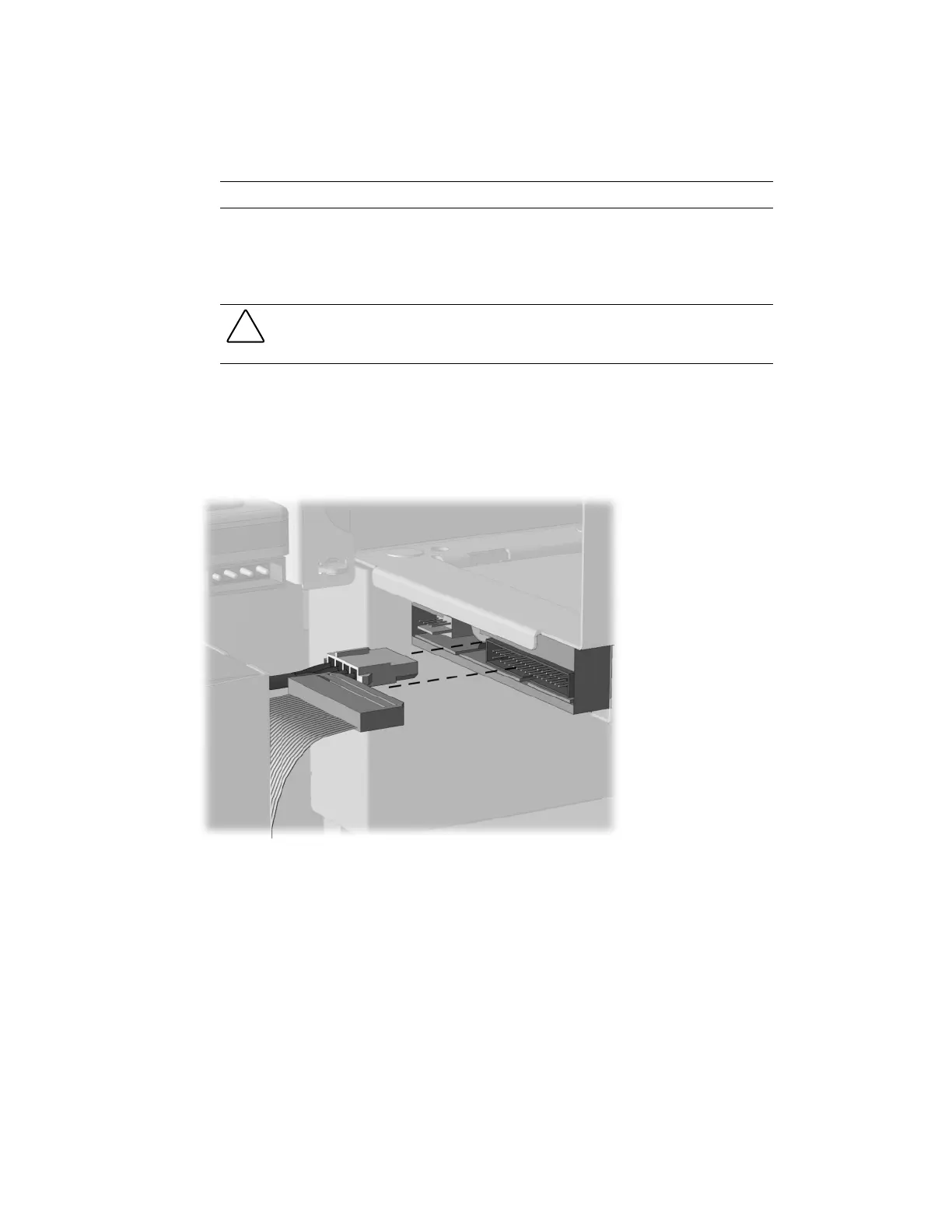

Figure 4-12. Disconnecting the cables from the diskette drive
