Removal and Replacement Procedures
4-3
Cable Lock
The workstation comes standard with a cable lock provision for attaching a padlock and/or cable
lock. If installed, the locks must be removed before accessing internal components.
To remove the lock:
1. Unlock and remove the cable lock or the padlock.
2. Remove the security bracket (plate) seated over the cable lock bracket.
3. Unfasten the retaining screw to release the cable lock bracket.

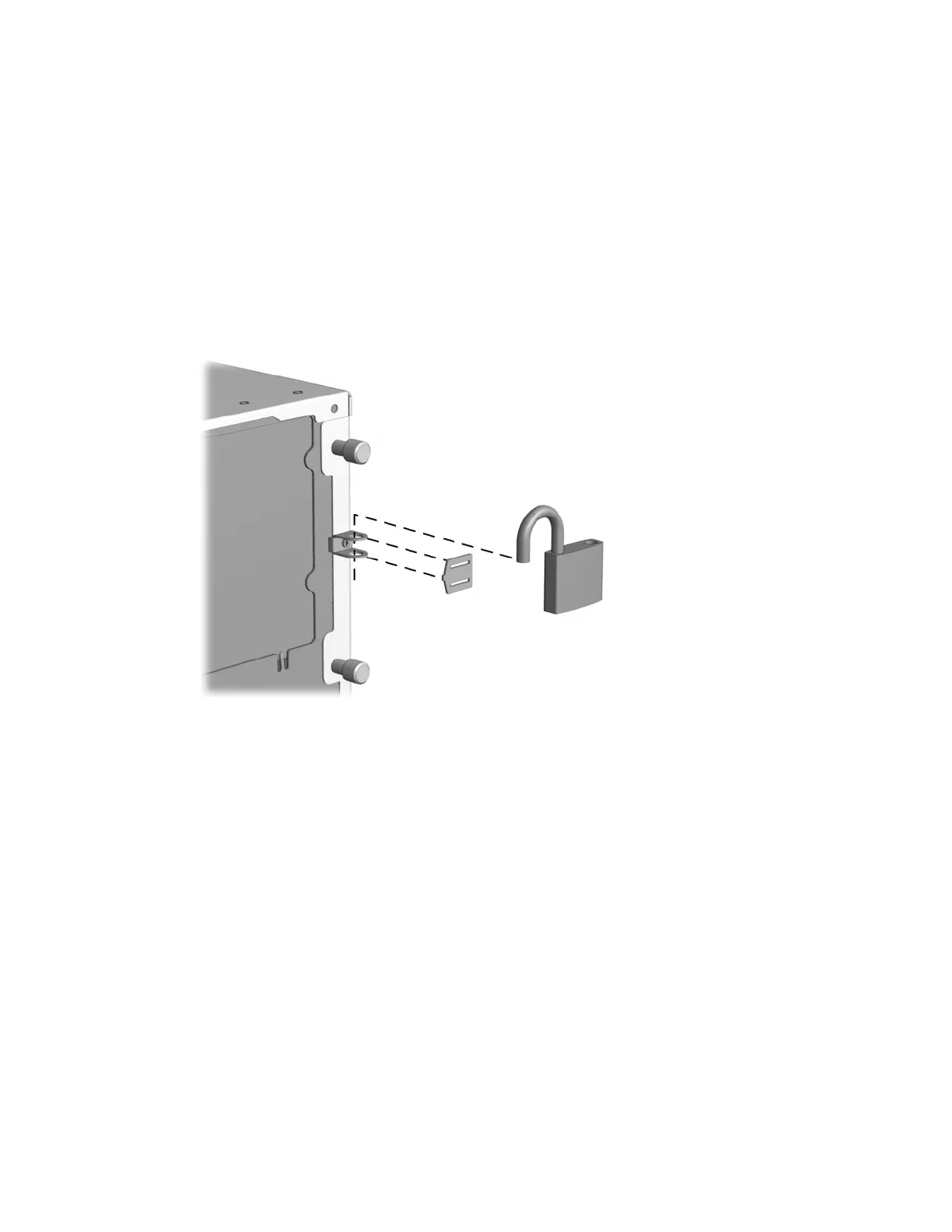

Figure 4-1. Removing the padlock
