Removal and Replacement Procedures
4-21
4. Pull back the power supply air baffle, as illustrated in the “Power Supply Air Baffle”
section in this chapter, to access the hard drive cage.
5. Loosen the two thumbscrews that hold the drive cage in place.
6. Slide the drive cage out of the chassis.

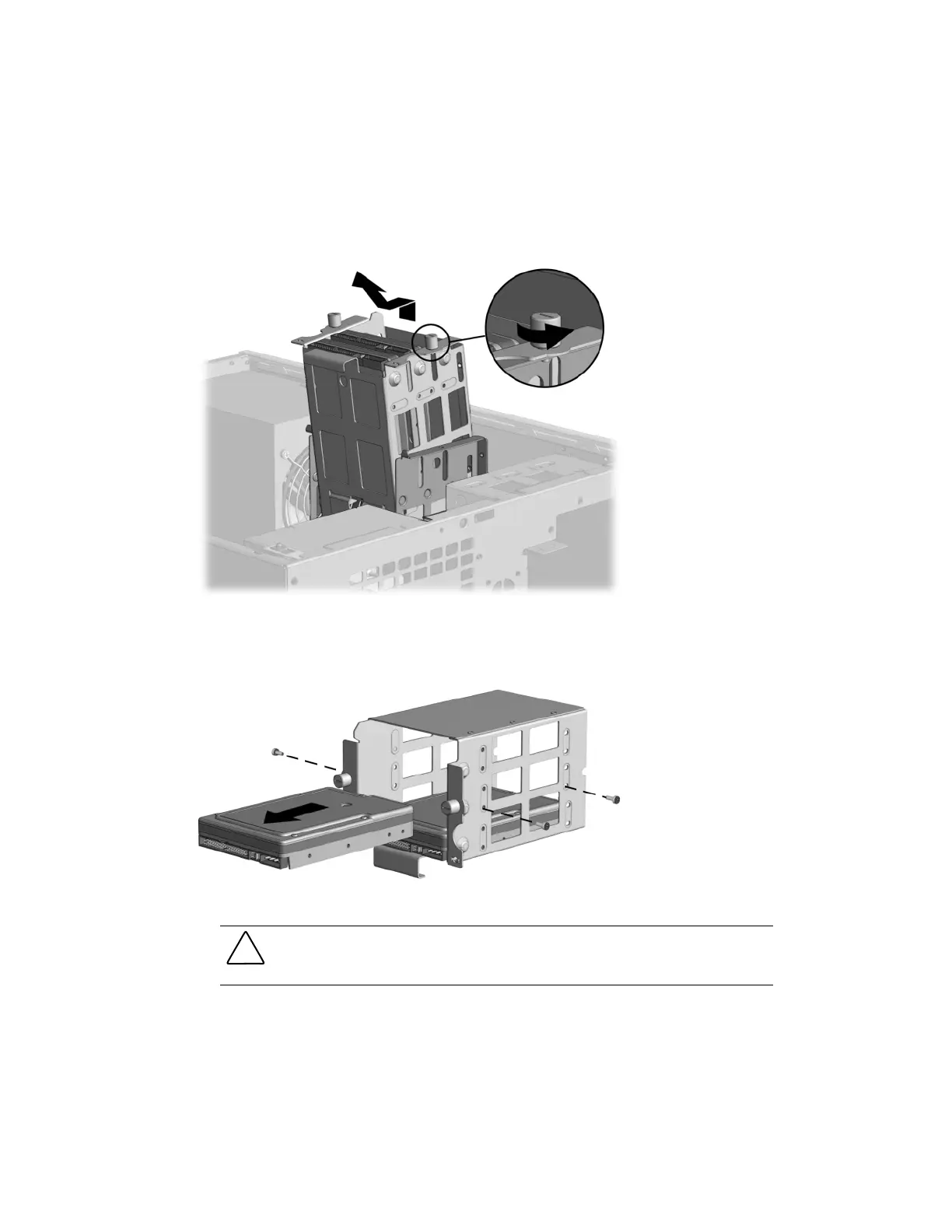

Figure 4-19. Removing the removable hard drive cage
7. Remove the four hard drive screws that secure the hard drive in the removable hard drive
cage, then pull the hard drive straight out.
Figure 4-20. Removing a hard drive from the removable hard drive cage
CAUTION:
When servicing the workstation, make sure cables are placed in their proper
locations during the reassembly process. Improper cable placement can damage the
workstation.
