Removal and Replacement Procedures
4-41
5. Hold the board at each end and carefully rock it back and forth until the connectors pull
free from the slot. Do not scrape the board against other components.

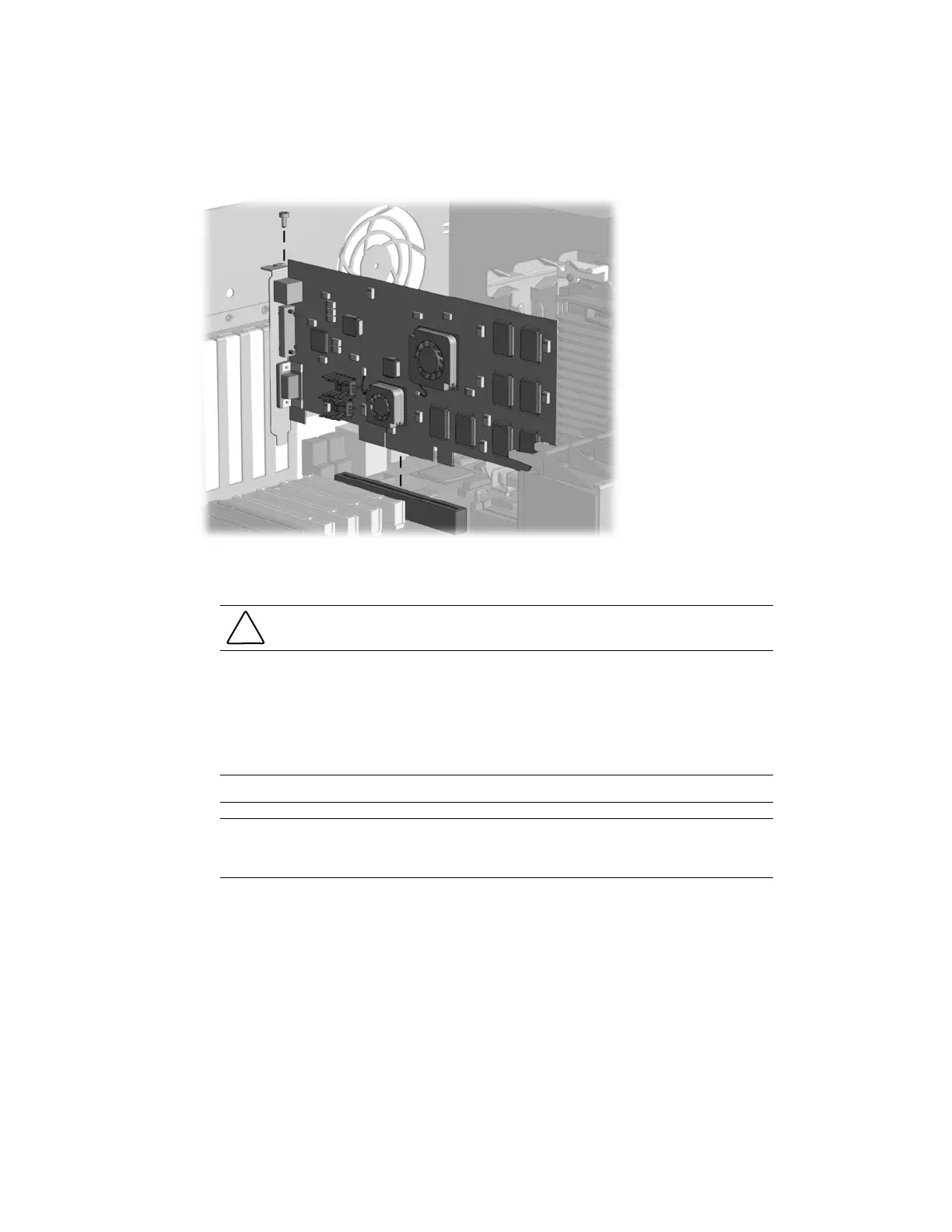

Figure 4-37. Removing an AGP Graphics Controller
6. Store the board in antistatic packaging.
CAUTION:
If you permanently remove an expansion board, install a protective slot cover to
ensure proper cooling.
7. Replace the side access panel.
8. Plug the network cable back into the system. Reconnect external devices and plug the
power cord back into the grounded AC outlet.
To install an AGP graphics controller, reverse the above procedure.
IMPORTANT:
To ensure the board fits properly, use AGP graphics controllers with ATX format brackets.
IMPORTANT:
When installing an AGP board, press firmly on the board so that the whole connector seats
properly in the AGP Pro slot. If you are installing a full-length expansion board, be sure to engage the
card guide.
