Fan duct
Description Spare part number

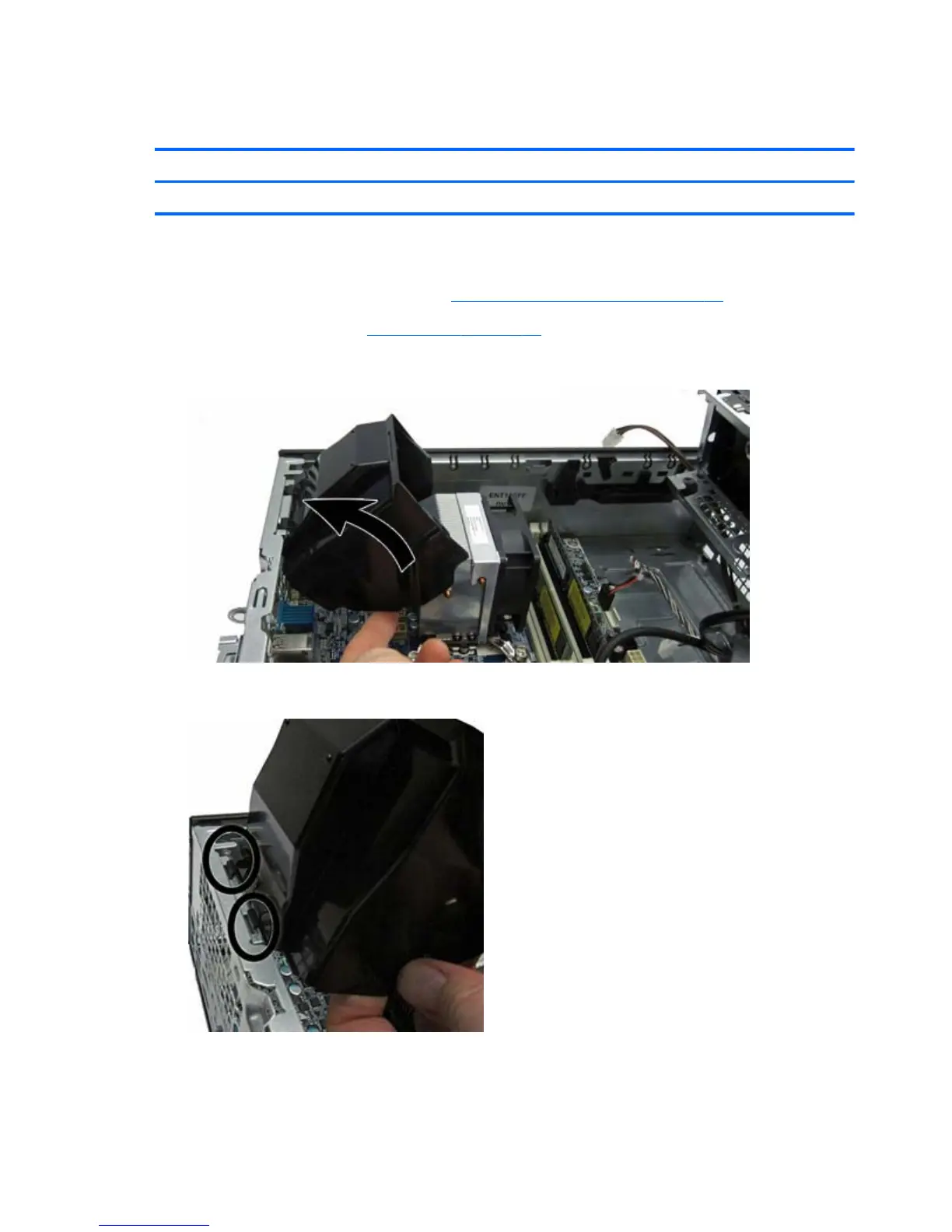

Fan duct 727145-001
The fan duct sits between the front fan and the heat sink.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 94).
2. Remove the access panel (
Access panel on page 95).
3. Rotate the fan duct upward.
4. Pull the duct away from the chassis to disengage the clips on the duct from the chassis.
To install the fan duct, reverse the removal procedure.
