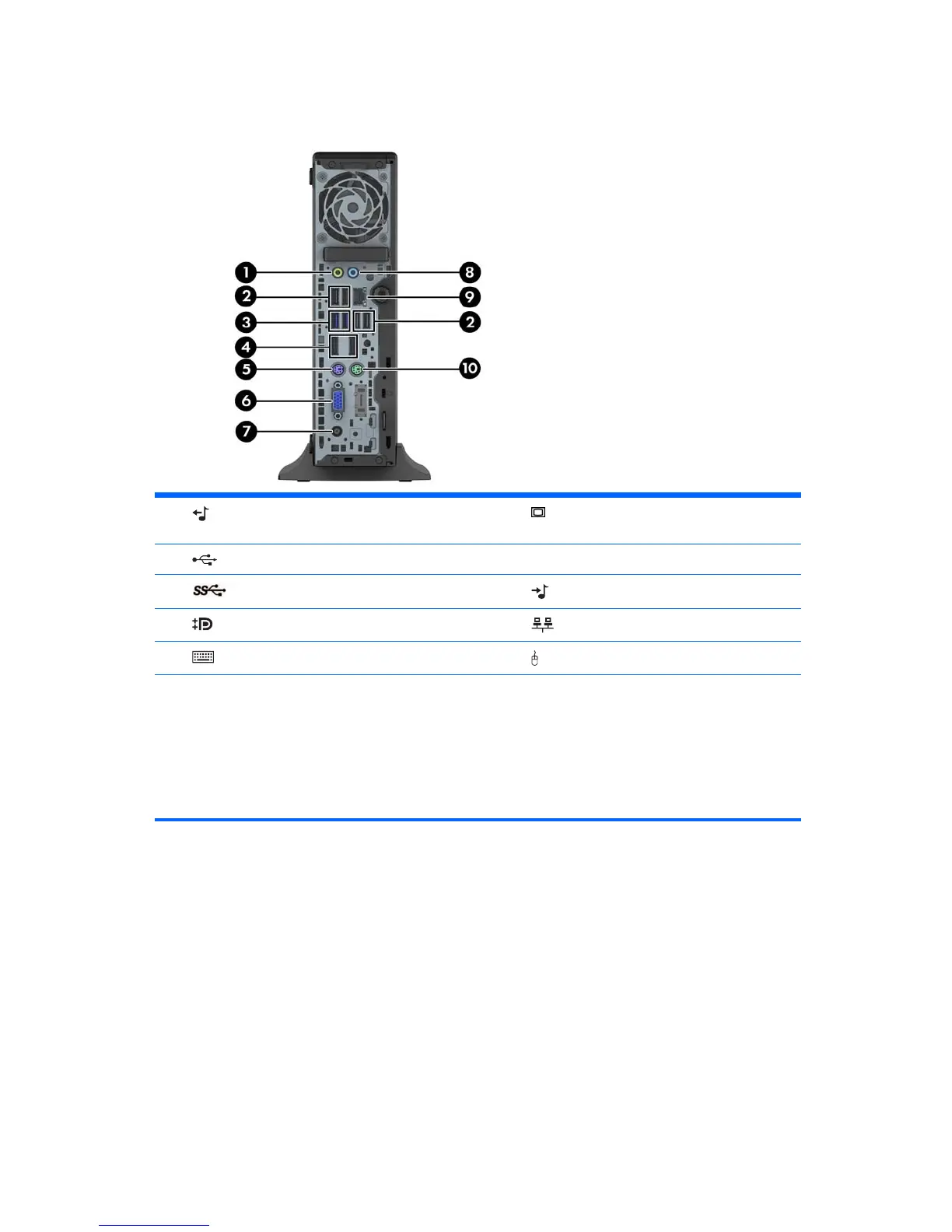

Ultra-slim Desktop (USDT) rear panel components
1 Line-Out Connector for powered audio devices
(green)
6 VGA Monitor Connector
2
USB 2.0 Ports (black) 7 Power Cord Connector
3
USB 3.0 Ports (blue) 8 Line-In Audio Connector (blue)
4
DisplayPort Monitor Connectors 9 RJ-45 Network Connector
5
PS/2 Keyboard Connector (purple) 10 PS/2 Mouse Connector (green)
NOTE: When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you
want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time by
double-clicking the Audio Manager icon in the Windows taskbar.
If an MXM graphics card is installed, all of the video connectors may be used at the same time. However, for such a
configuration, only the display connected to the upper DisplayPort will display POST messages.
The system board graphics can be disabled by changing settings in Computer Setup.
Serial number location
Each computer has a unique serial number and a product ID number that are located on the exterior of
the computer. Keep these numbers available for use when contacting customer service for assistance.
