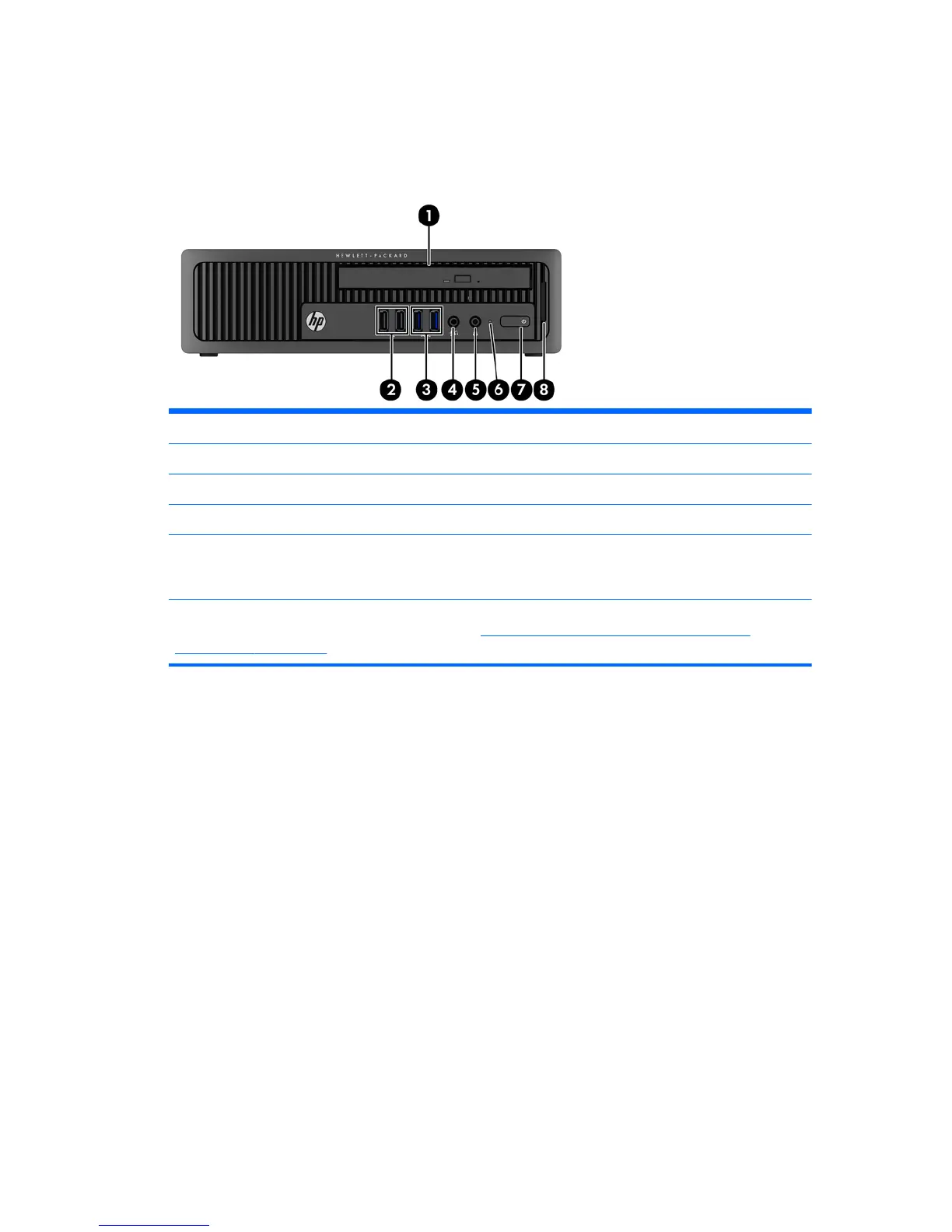

Ultra-slim Desktop (USDT) front panel components
Drive configuration may vary by model. Some models have a bezel blank covering the optical drive
bay.
1 Slim Optical Drive (optional) 5 Headphone Connector
2 USB 2.0 Ports (black) 6 Hard Drive Activity Light
3 USB 3.0 Ports (blue) 7 Dual-State Power Button
4 Microphone/Headphone Connector 8 SD Media Card Reader (optional)
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the connector
at any time by double-clicking the Audio Manager icon in the Windows taskbar.
NOTE: The Power On Light is normally white when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code.Refer to
Interpreting POST diagnostic front panel LEDs and
audible codes on page 245 to interpret the code.
Ultra-slim Desktop (USDT) front panel components
5
