Front I/O assembly
Description Spare part number
Front I/O assembly 732755-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 94).
2. Remove the access panel (
Access panel on page 95).
3. Remove the front bezel (
Front bezel on page 96).
4. Rotate the drive cage to its upright position.

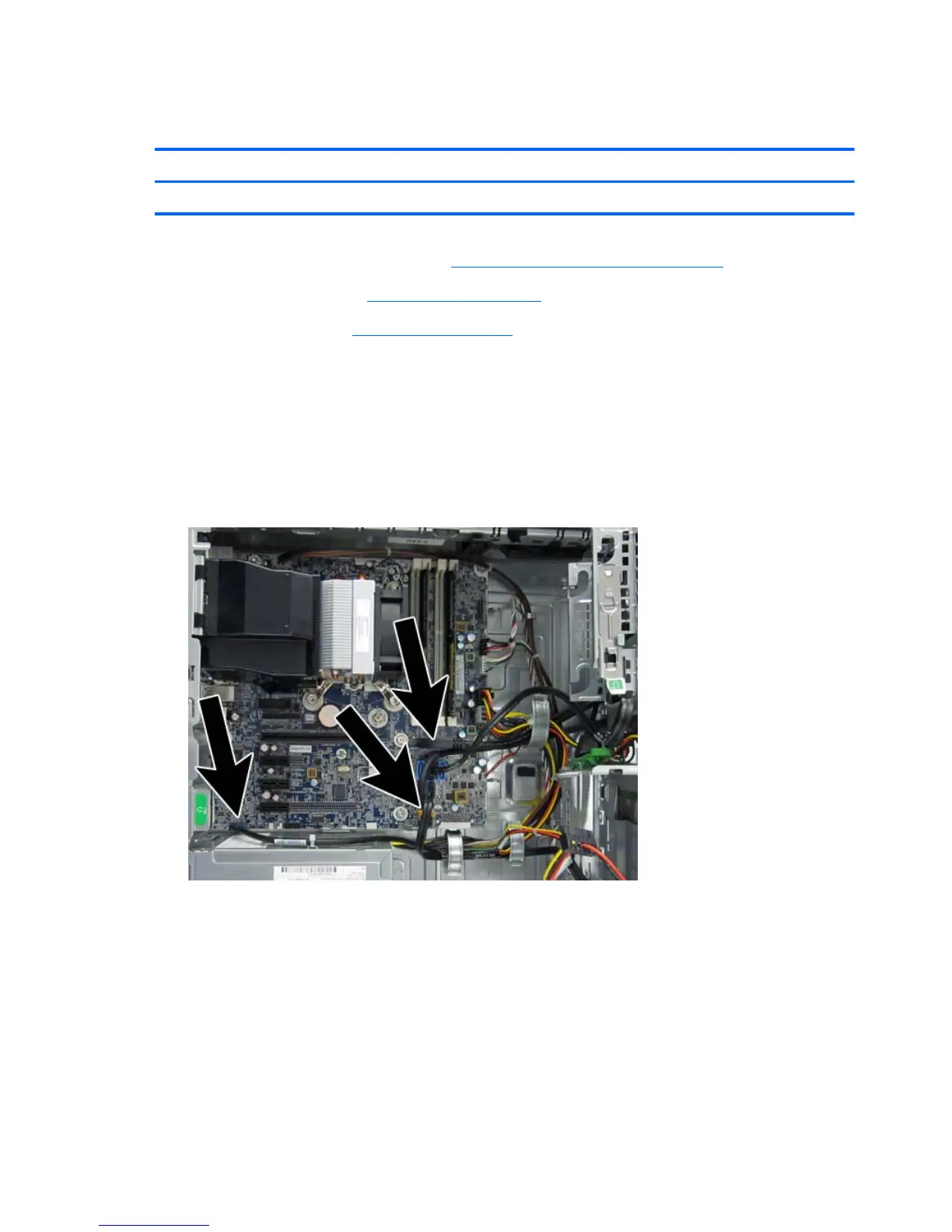

5. Disconnect the cables from the system board as follows:
●
Yellow connector labeled FRONT_USB
●
Black connector labeled MEDIA 3.0
●
Blue connector labeled FRONT AUD
130 Chapter 6 Removal and replacement procedures: Small Form Factor (SFF)
