Fan
Description Spare part number
Fan 727135-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 44).
2. Remove the access panel (
Access panel on page 45).

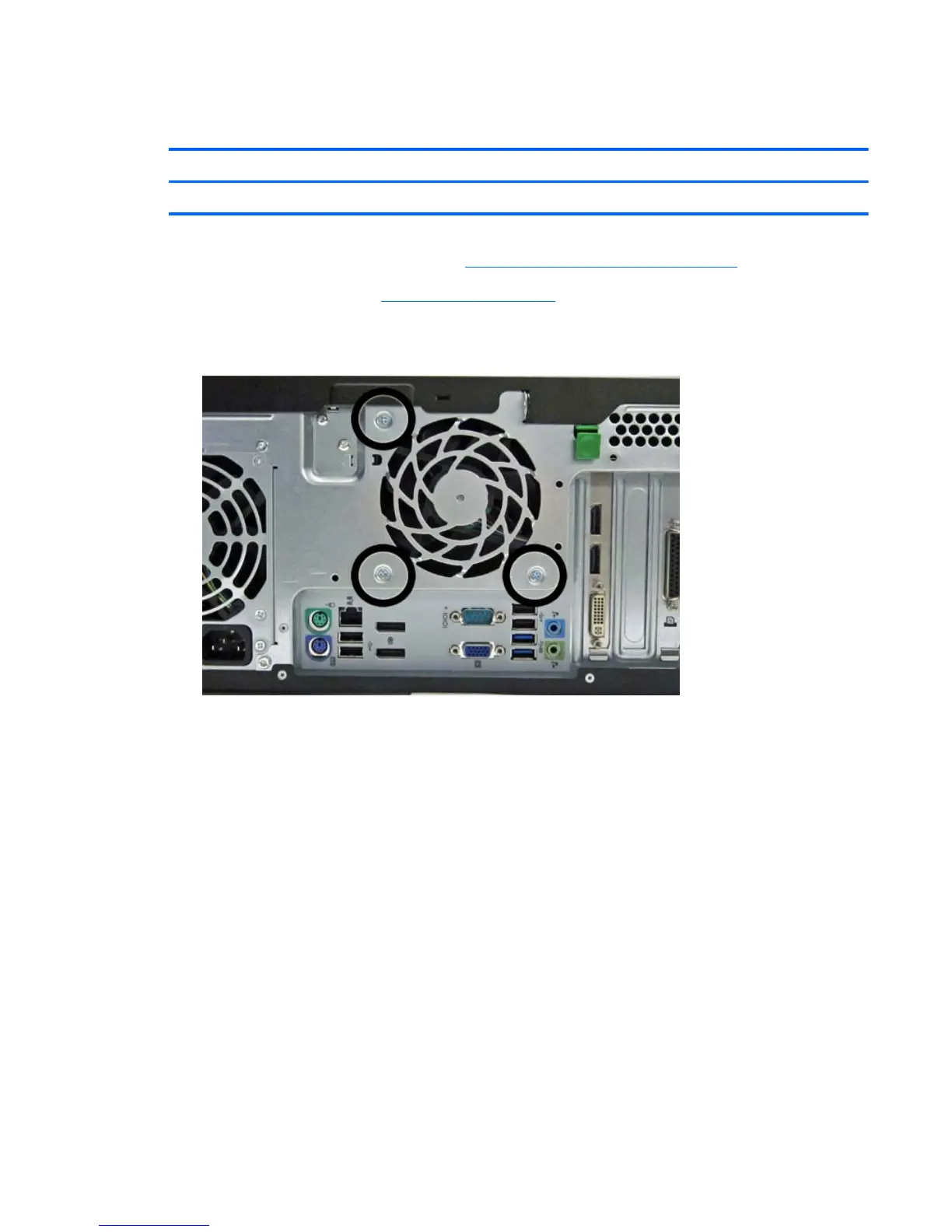

3. From the outside, rear side of the chassis, remove the three silver Phillips screws that secure the fan
to the chassis.
4. From the inside of the chassis, disconnect the fan control cable (1) from the system board
connector labeled CHFAN2.
Fan
87
