HP EliteDesk 800 G1 Small Form Factor Service Manual

Processor
Description Spare part number
Intel Core i7 4770s, 3.4 GHz, 8-MB L3 cache (includes thermal material) 732507-001
Intel Core i5 4670s, 3.1 GHz, 6-MB L3 cache (includes thermal material) 732506-001
Intel Core i5 4570s, 2.9 GHz, 6-MB L3 cache (includes thermal material) 732505-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 141).
2. Remove the access panel (
Access panel on page 142).
3. Remove the heat sink (
Heat sink on page 157).

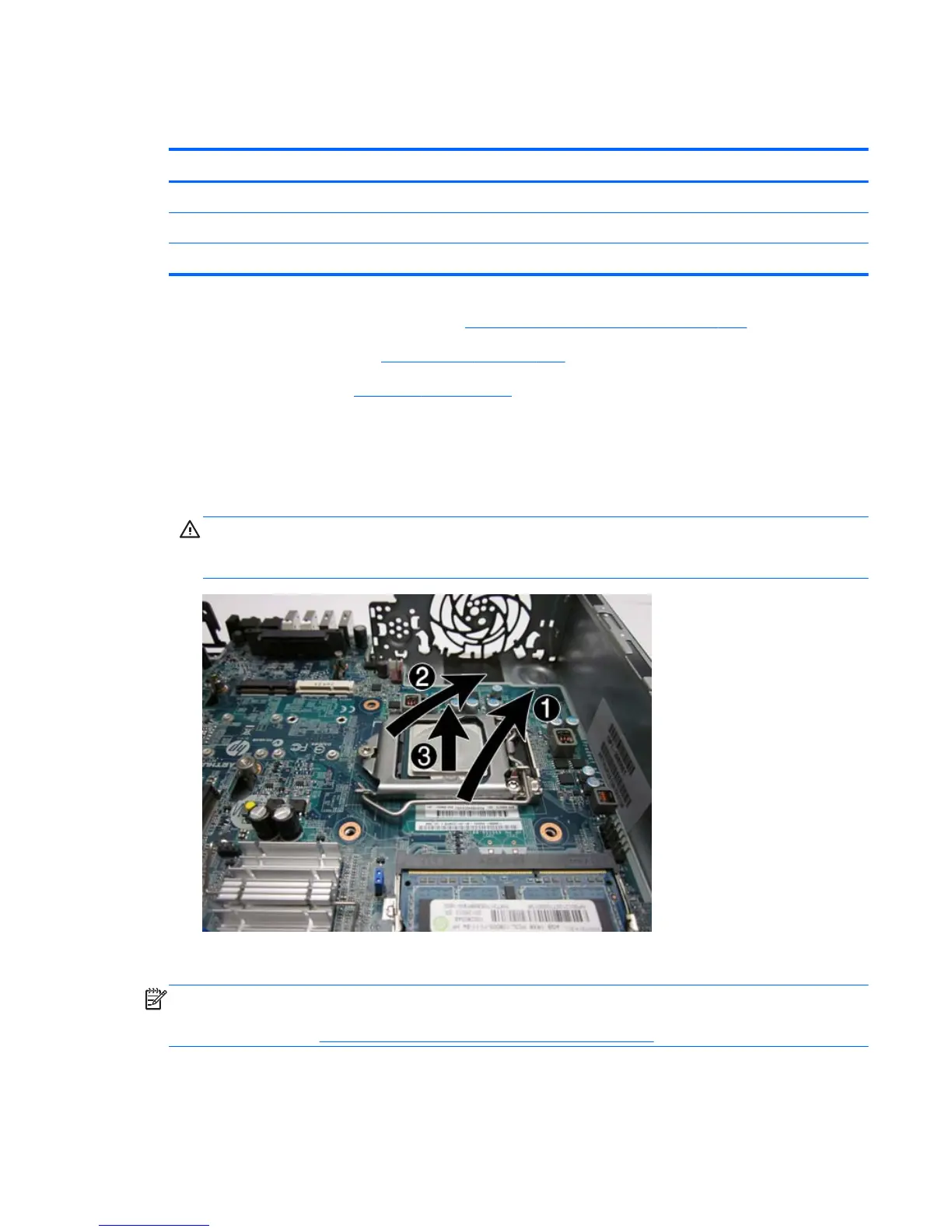

4. Rotate the processor locking lever to its full open position (1).
5. Raise and rotate the microprocessor retainer to its fully open position (2).
6. Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
To install the processor, reverse the removal procedures.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can be
found on the Web at:
http://www8.hp.com/us/en/support-drivers.html.
