HP EliteDesk 800 G1 Small Form Factor Service Manual

2.5-inch hard drive bay, the second connector routed to the middle 3.5-inch hard drive bay, and
the third connector routed to the top 3.5-inch hard drive bay.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in
place. HP has provided extra guide screws (four 6-32 silver and blue isolation mounting guide
screws and four silver 6-32 standard guide screws) installed on the side of the drive bays. The
6-32 isolation mounting screws are required for 3.5-inch hard drives installed in the 3.5-inch hard
drive bays. The 6-32 standard guide screws are required for a USB 3.0 media card reader
installed in the 3.5-inch optional drive bay. M3 metric guide screws for 5.25-inch optical drives
and M3 isolation mounting guide screws for 2.5-inch hard drives are not provided. If you are
replacing a drive, remove the guide screws from the old drive and install them in the new drive.

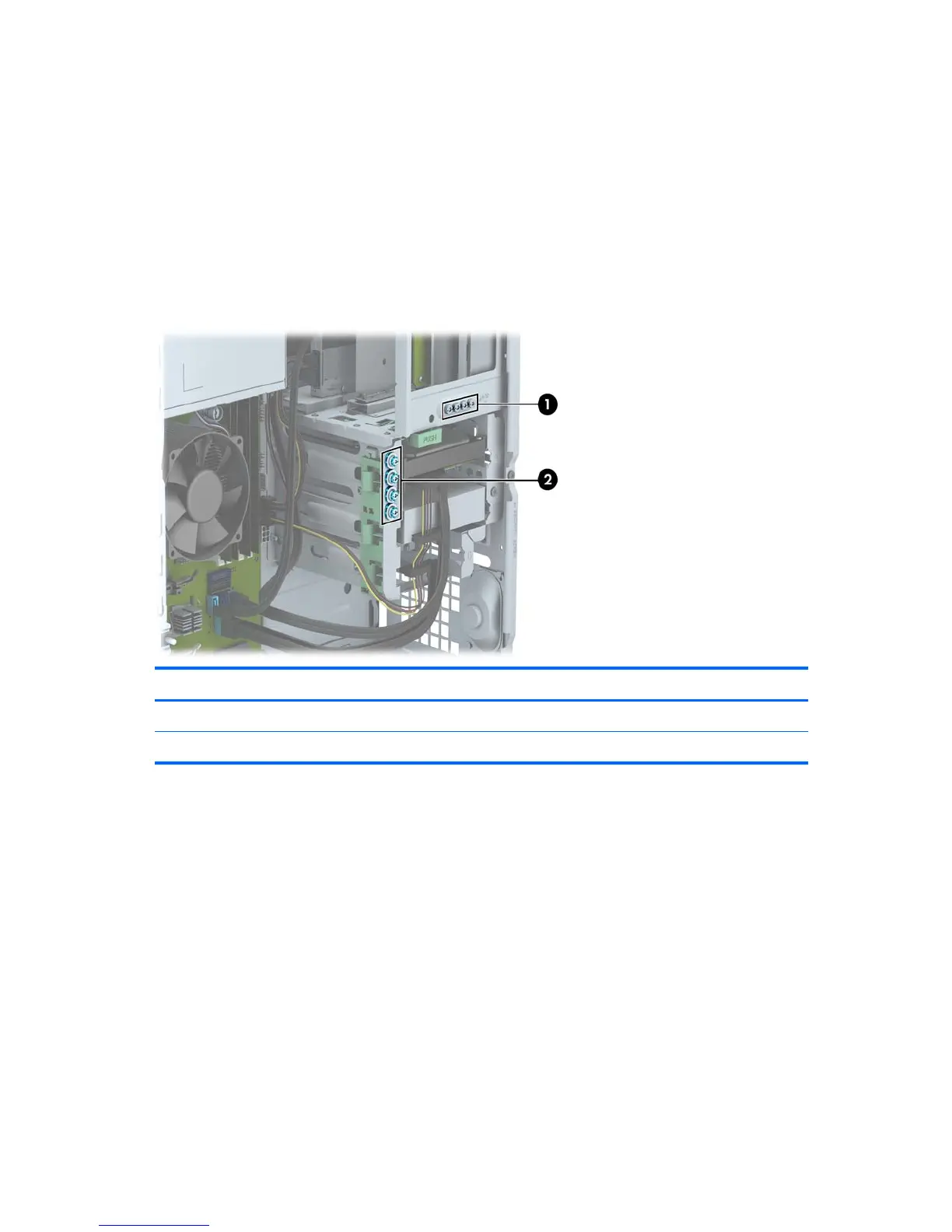

No. Guide Screw Device
1 Silver Standard 6-32 Guide Screws USB 3.0 Media Card Reader
2 Silver and Blue 6-32 Isolation Mounting Screws Secondary Hard Drive in 3.5-inch Hard Drive Bay
60 Chapter 5 Removal and replacement procedures: Tower (TWR)
