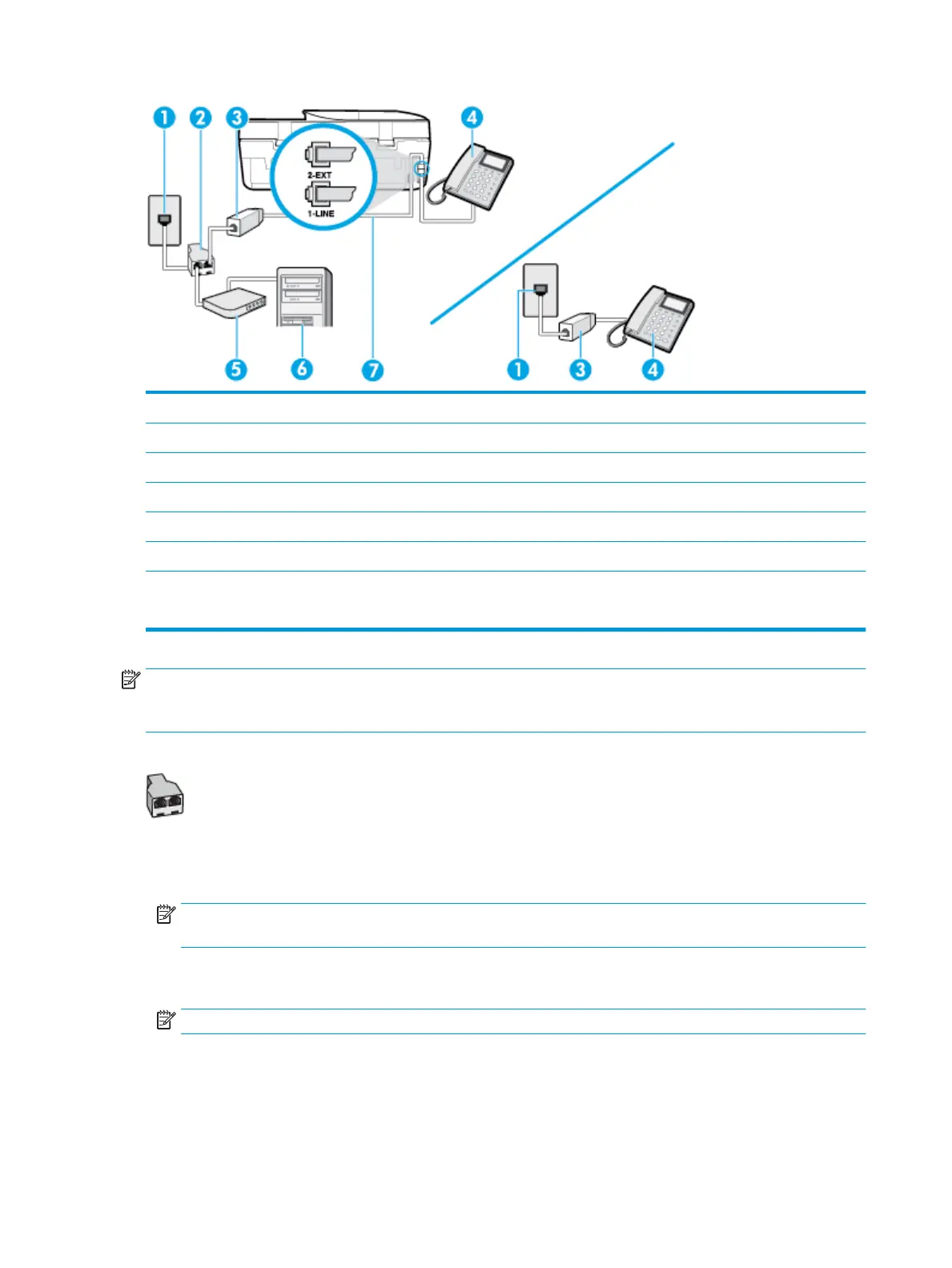

1 Telephone wall jack
2 Parallel splitter
3 DSL/ADSL lter
4 Telephone
5 DSL/ADSL modem
6 Computer
7 Use the phone cord provided to connect to the 1-LINE port on the back of the printer.
You might need to connect the phone cord to your country/region adapter.
NOTE: You need to purchase a parallel splitter. A parallel splitter has one RJ-11 port on the front and two
RJ-11 ports on the back. Do not use a 2–line phone splitter, a serial splitter, or a parallel splitter which has two
RJ-11 ports on the front and a plug on the back.
Figure 5-10 Example of a parallel splitter
To set up the printer with a computer DSL/ADSL modem
1. Obtain a DSL lter from your DSL provider.
NOTE: Phones in other parts of the home/oice sharing the same phone number with DSL service
need to be connected to additional DSL lters to avoid noise when making voice calls.
2. Using the phone cord supplied in the box with the printers, connect one end to the DSL lter, then
connect the other end to the port labeled 1-LINE on the back of the printer.
NOTE: You might need to connect the phone cord to your country/region adapter.
3. If you have a parallel-type phone system, remove the white plug from the port labeled 2-EXT on the
back of the printer, and then connect a phone to this port.
4. Connect the DSL lter to the parallel splitter.
5. Connect the DSL modem to the parallel splitter.
68 Chapter 5 Fax ENWW
