Static Virtual LANs (VLANs)
Port-Based Virtual LANs (Static VLANs)
Default VLAN
and VLAN ID

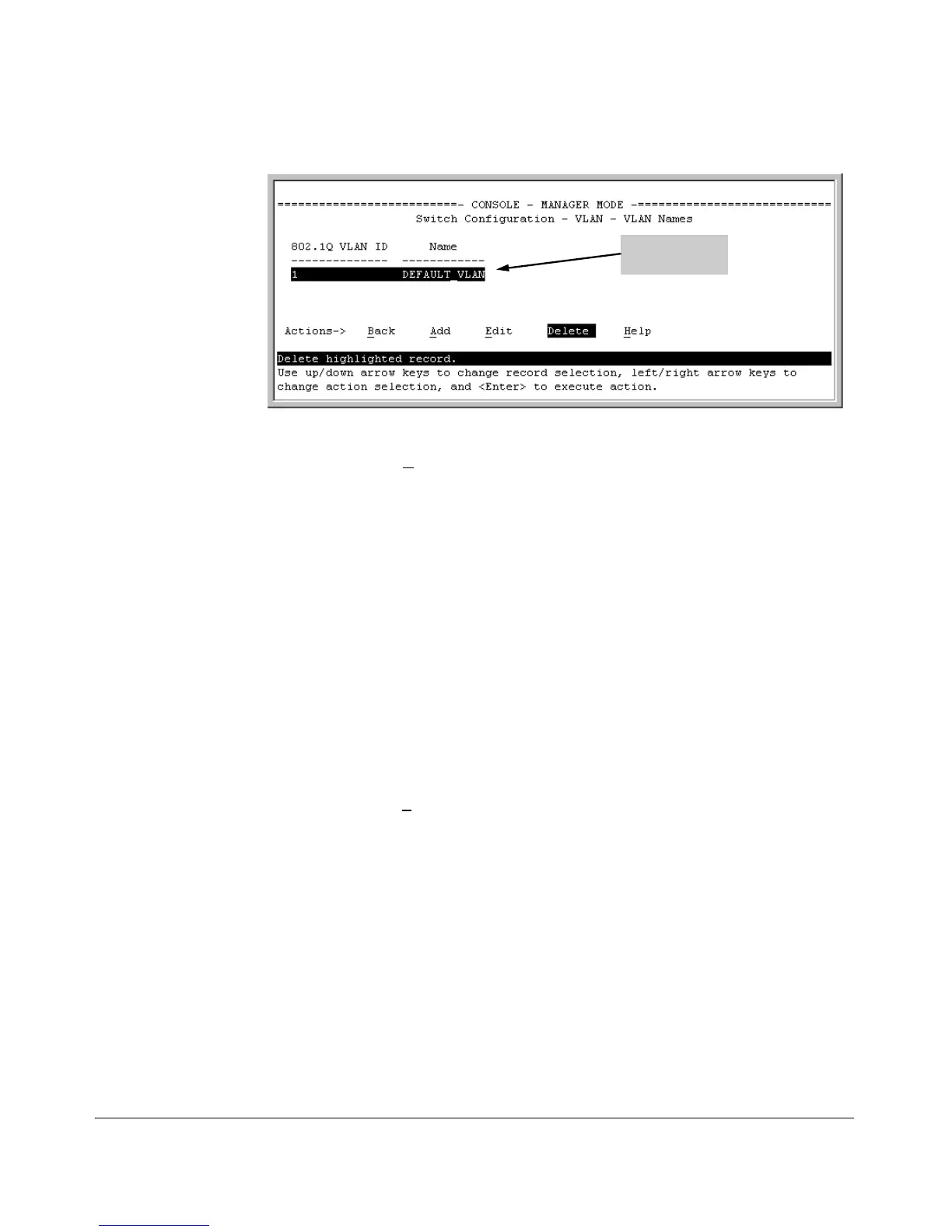

Figure 2-13. The Default VLAN Names Screen
2. Press [A] (for A
dd). You will then be prompted for a new VLAN name and
VLAN ID:
802.1Q VLAN ID : 1
Name : _
3. Type in a VID (VLAN ID number). This can be any number from 2 to 4094
that is not already being used by another VLAN. (The switch reserves “1”
for the default VLAN.)
Remember that a VLAN must have the same VID in every switch in which
you configure that same VLAN. (GVRP dynamically extends VLANs with
correct VID numbering to other switches. See chapter 3, “GVRP”.)
4. Press [v] to move the cursor to the Name line and type the VLAN name (up
to 12 characters, with no spaces) of a new VLAN that you want to add,
then press
[Enter].
(Avoid these characters in VLAN names:
@, #, $, ^, &, *, (, and ).)
5. Press
[S] (for Save). You will then see the VLAN Names screen with the
new VLAN listed.
2-18
