Static Virtual LANs (VLANs)
Port-Based Virtual LANs (Static VLANs)
Menu: Configuring VLAN Parameters
In the factory default state, support is enabled for up to eight VLANs. (You can
change the switch VLAN configuration to support additional VLANs. Also, all
ports on the switch belong to the default VLAN (DEFAULT_VLAN) and are in
the same broadcast/multicast domain. (The default VLAN is also the default
primary VLAN—see “The Primary VLAN” on page 2-6.) In addition to the
default VLAN, you can configure up to 29 other static VLANs by changing the
“Maximum VLANs” parameter, adding new VLAN names and VIDs, and then
assigning one or more ports to each VLAN. Note that each port can be assigned
to multiple VLANs by using VLAN tagging. (See “802.1Q VLAN Tagging” on
page 2-26.)
To Change VLAN Support Settings
This section describes:
■ Changing the maximum number of VLANs to support
■ Changing the primary VLAN selection (See “Changing the Primary VLAN”
on page 2-22.)
1. From the Main Menu select:
2. Switch Configuration
8. VLAN Menu . . .
1. VLAN Support
You will then see the following screen:

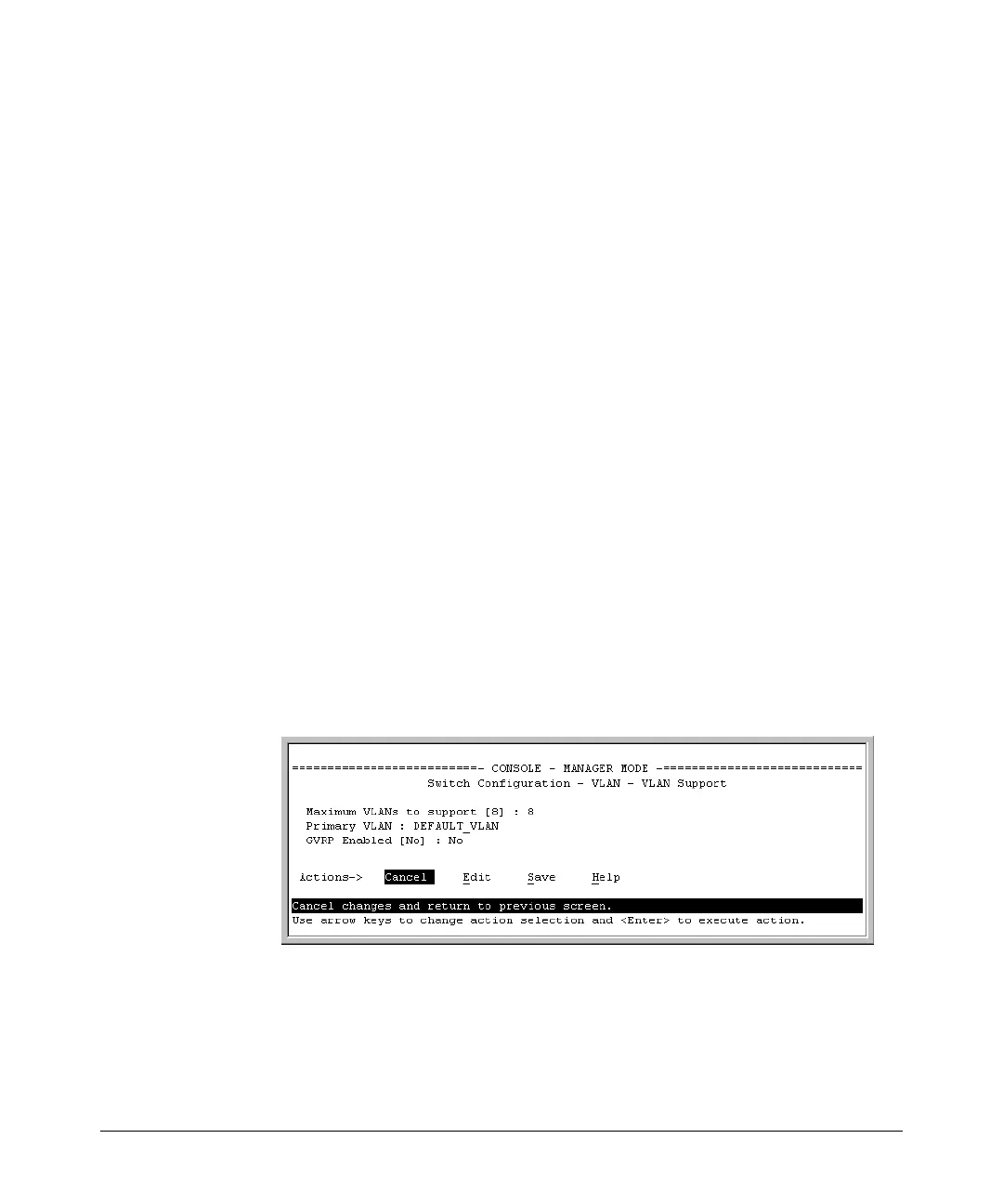

Figure 2-8. The Default VLAN Support Screen
2. Press [E] (for Edit), then do one or more of the following:
■ To change the maximum number of VLANs, type the new number.
■ To designate a different VLAN as the primary VLAN, select the Primary
VLAN field and use the space bar to select from the existing options.
