Hardware options installation 110
Systems Insight Display power switch module option
This option is not supported in servers configured with 4LFF or 12LFF drives.
To install the component:
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 26).
o Remove the server from the rack (on page 27).
4. Remove the access panel (on page 27).
5. Remove the air baffle (on page 32).
6. Remove the fan cage (on page 29).
CAUTION: When routing cables, always be sure that the cables are not in a position where
they can be pinched or crimped.

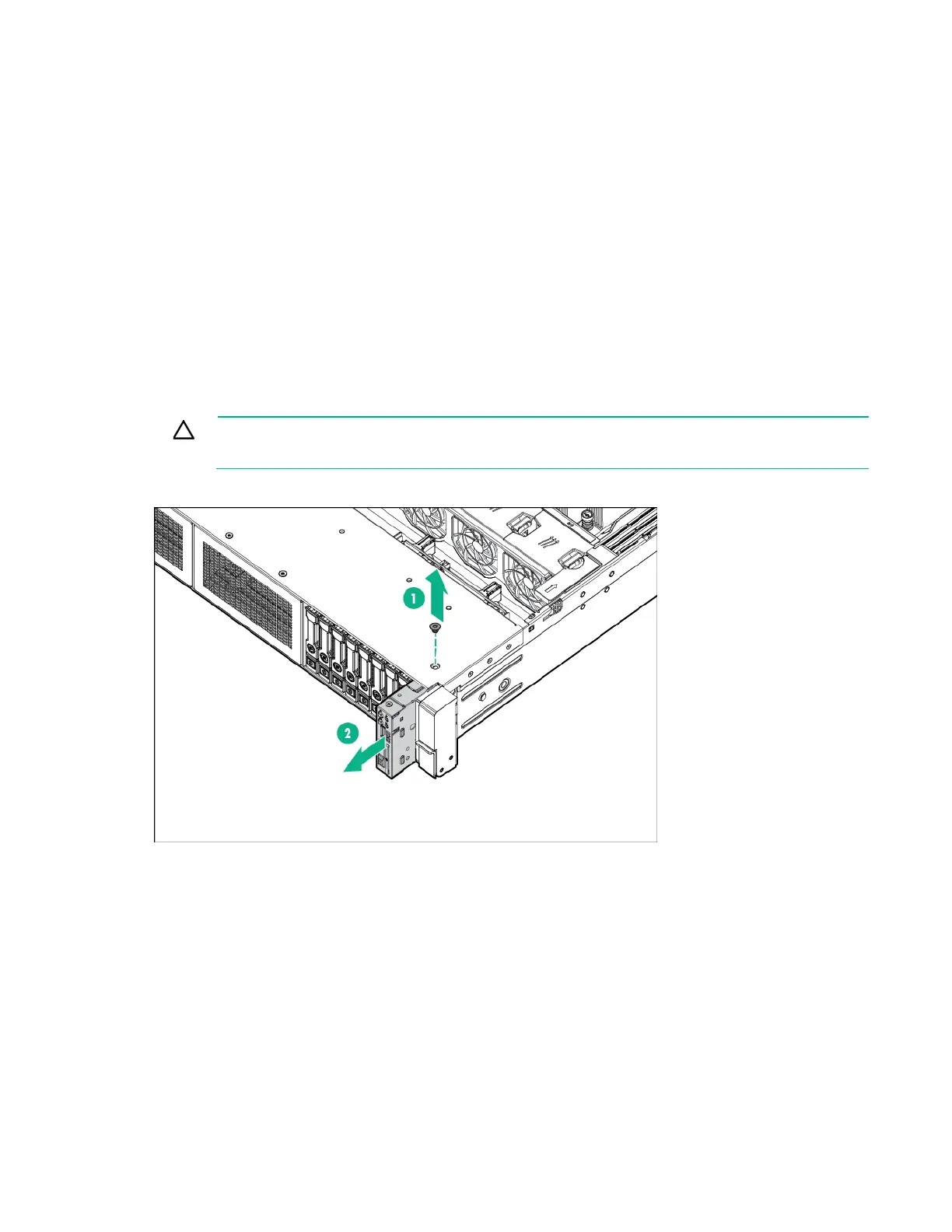

7. Remove the cabled power switch module. Retain the T-10 screw for later use.
