2.
Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 26).
4. Remove the access panel (on page 27).
5. Remove the PCIe riser cage ("Remove the PCI riser cage" on page 30).
6. Remove the expansion slot blank ("Installing an expansion board" on page 118).
IMPORTANT: For management and monitoring of the SSD modules, use the HPE Smart
Storage Administrator (http://www.hpe.com/servers/ssa).

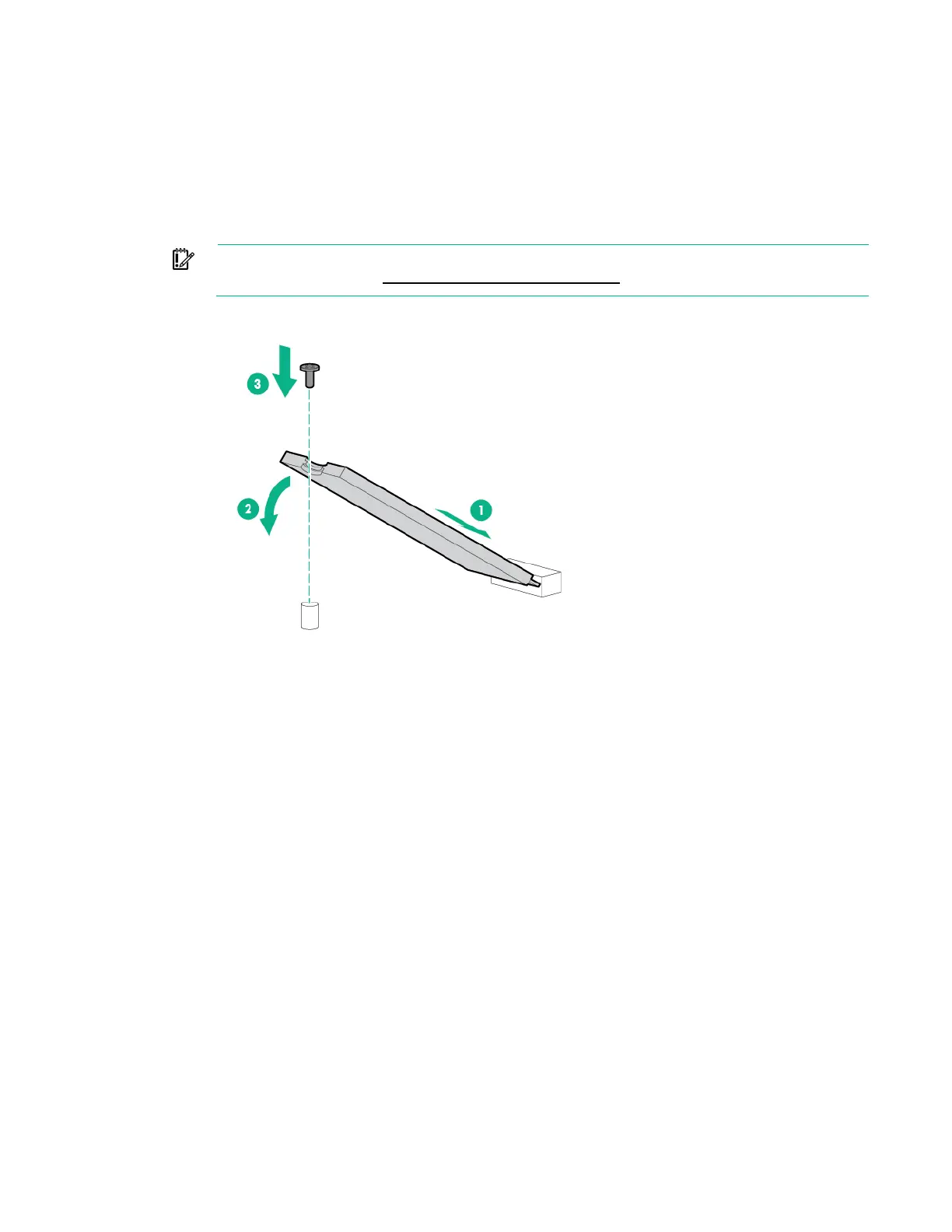

7. Install the SSD module on the M.2 SSD enablement board.
8. Install the M.2 SSD enablement board in any slot in the primary or secondary PCI riser cage
("Installing an M.2 SSD enablement board" on page 132).
9. Install the PCI riser cage (on page 31).
10. Install the access panel (on page 28).
11. Install the server into the rack ("Installing the server into the rack" on page 39).
12. Connect each power cord to the server.
13. Connect each power cord to the power source.
14. Power up the server ("Powering up the server" on page 26).
Installing an M.2 SSD enablement board
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 26).
o Remove the server from the rack (on page 27).
4. Remove the access panel (on page 27).
5. Remove the PCIe riser cage ("Remove the PCI riser cage" on page 30).
