Hardware options installation 94
o

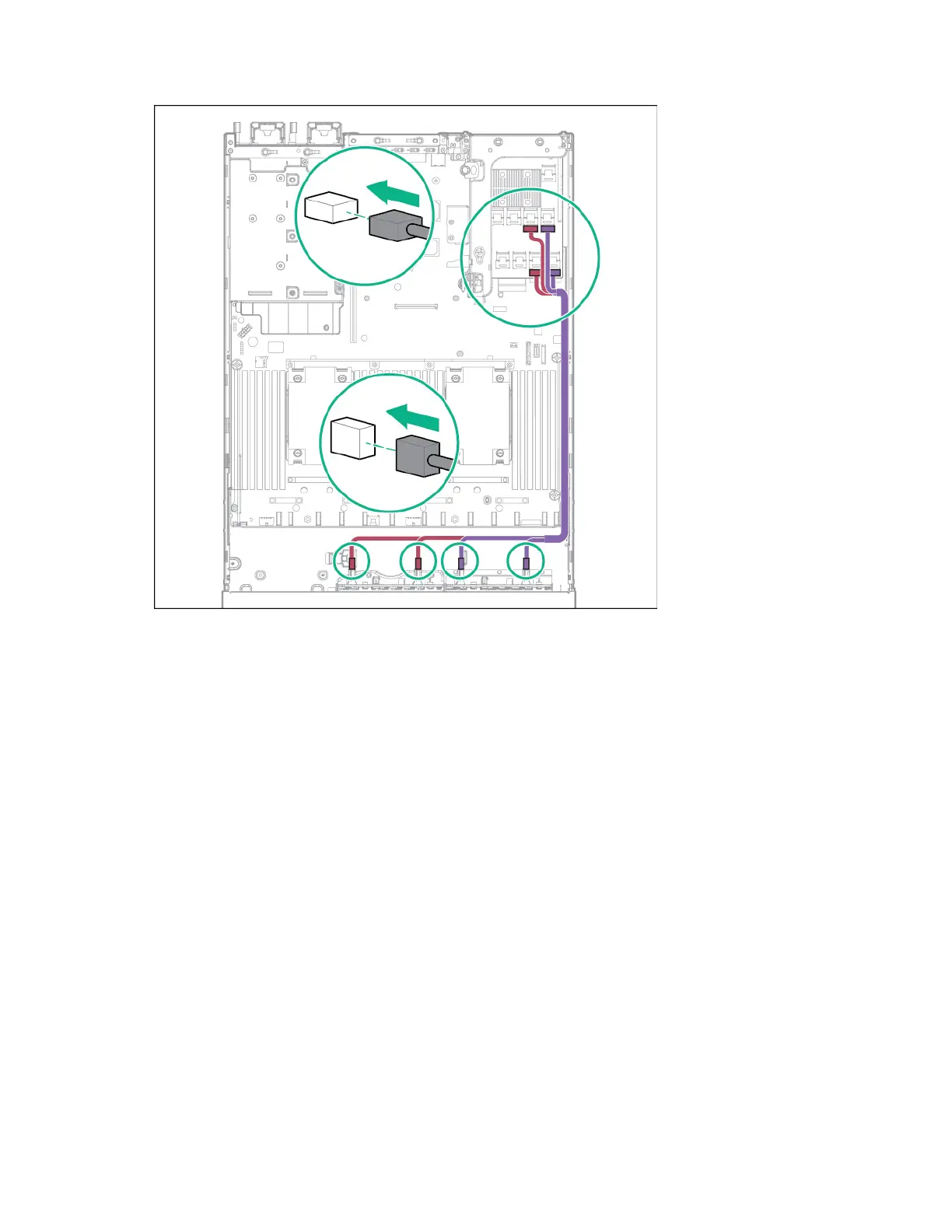

Connected to an HPE 12G SAS Expander Card
10. Install the fan cage.
11. Install the access panel (on page 28).
12. Slide the server into the rack.
13. Connect each power cord to the server.
14. Connect each power cord to the power source.
15. Power up the server ("Powering up the server" on page 26).
Three-bay LFF rear drive cage option
Before installing this option the front bays must be fully populated with 12 LFF drives. High performance
fans must be installed in all fan bays.
To install the component:
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 26).
o Remove the server from the rack (on page 27).
4. Remove the access panel (on page 27).
