Systems Insight Display LEDs

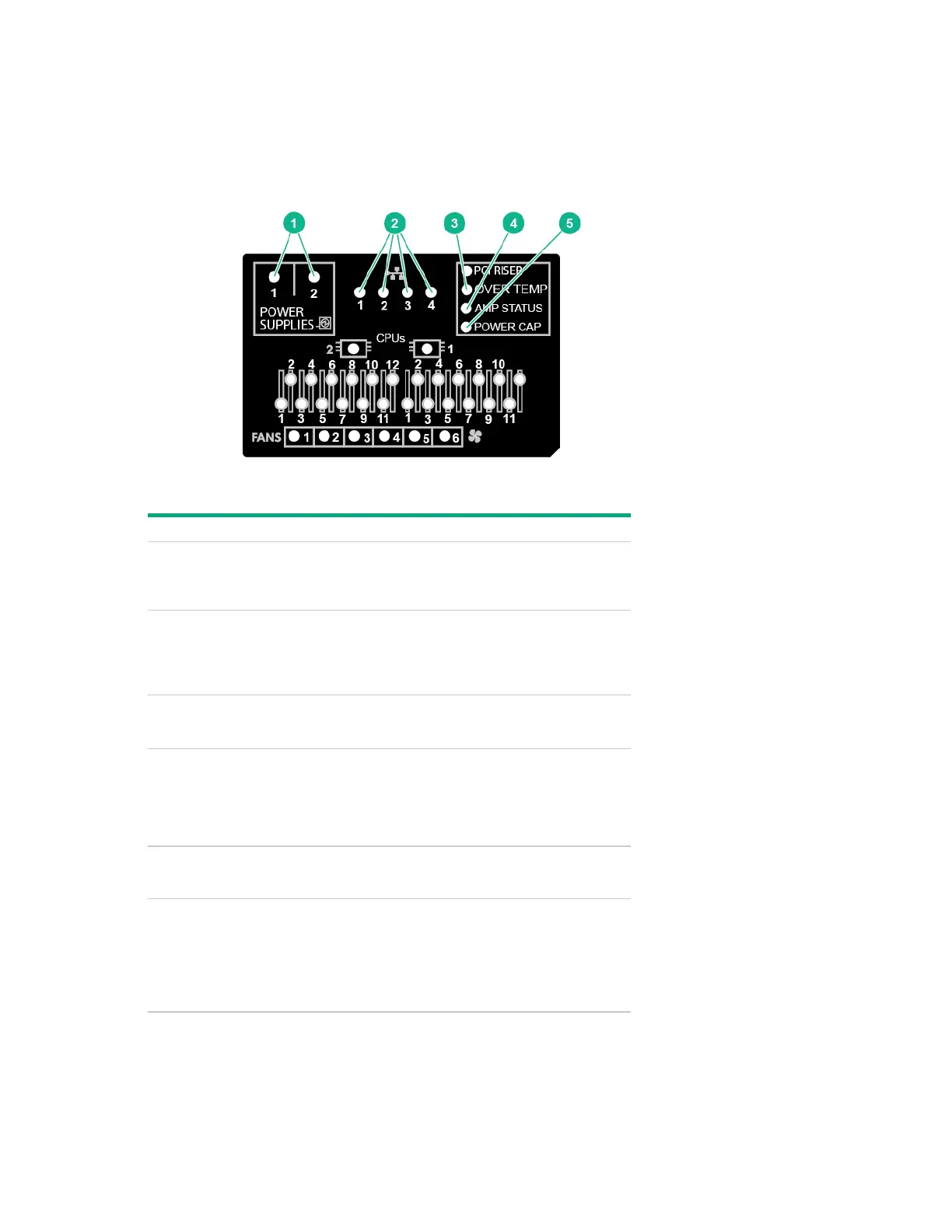

The Systems Insight Display LEDs represent the system board layout. The display enables diagnosis with
the access panel installed.
Item
Description
Status
1
Power supplies
Off = Normal
Solid amber = Power subsystem
degraded, power supply failure, or input
power lost.
2
NIC link/activity
Off = No link to network. If the power is off,
view the rear panel RJ-45 LEDs for status
("Rear panel LEDs" on page 14).
Flashing green = Network link and activity
Solid green = Network link
3
Over temp
Off = Normal
Solid amber = High system temperature
detected
4
AMP status
Off = AMP modes disabled
Solid green = AMP mode enabled
Solid amber = Failover
Flashing amber = Invalid configuration
5
Power cap
Off = System is in standby, or no cap is
set.
Solid green = Power cap applied
—
All other LEDs
Off = Normal
Amber = Failure
For more information on the activation of
these LEDs, see "Systems Insight Display
LED combinations (on page 13)."
