HP ProLiant DL380 Gen9 - System Board Components

Component identification 16
LED
Mode/State
Flashing red
Auxiliary path A/B protection
Solid red
FSBBU fault or other protections
For more information about the FSBBU module, see "750 W Flex Slot Hot Plug Battery Backup Module
(on page 134)."

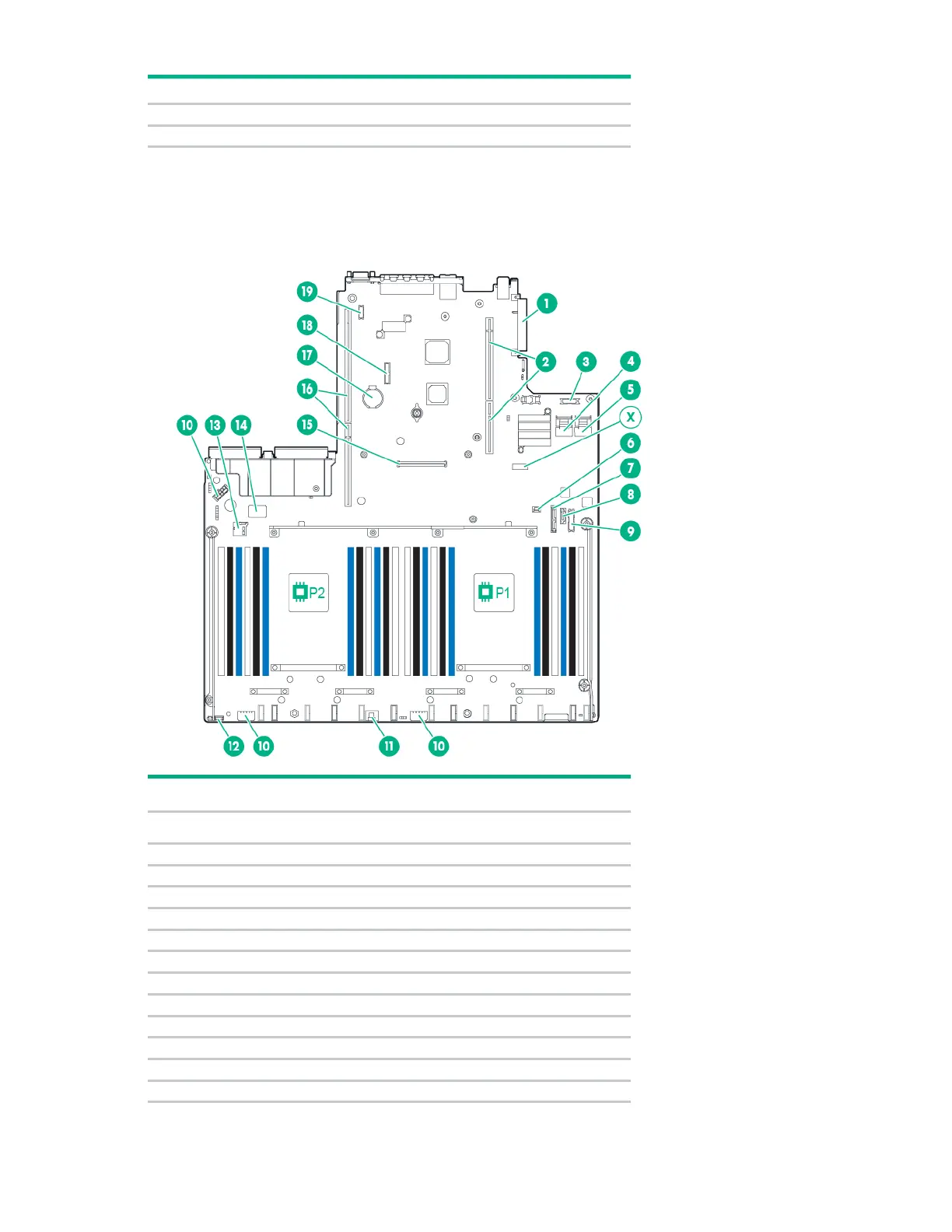

System board components
Item Description
1
FlexibleLOM connector
2
Primary (processor 1) PCI riser connector
3
Optical front VGA/USB 2.0 connector
4
x4 SATA port 1
5
x4 SATA port 2
6
Backplane presence detect connector
7
Optical/SATA port 5
8
SATA port 4
9
Front power/USB 3.0 connector
10
Drive backplane power connector
11
HPE Smart Storage Battery connector
12
Optional Location Discovery Services connector
13
MicroSD card slot
