HP ProLiant DL380 Gen9

Component identification 15
Item
Description
Status
Solid green = Link to network
Flashing green = Network activity
4
Power supply 2
LED
Off = System is off or power supply has failed.
Solid green = Normal
5
Power supply 1
LED
Off = System is off or power supply has failed.
Solid green = Normal

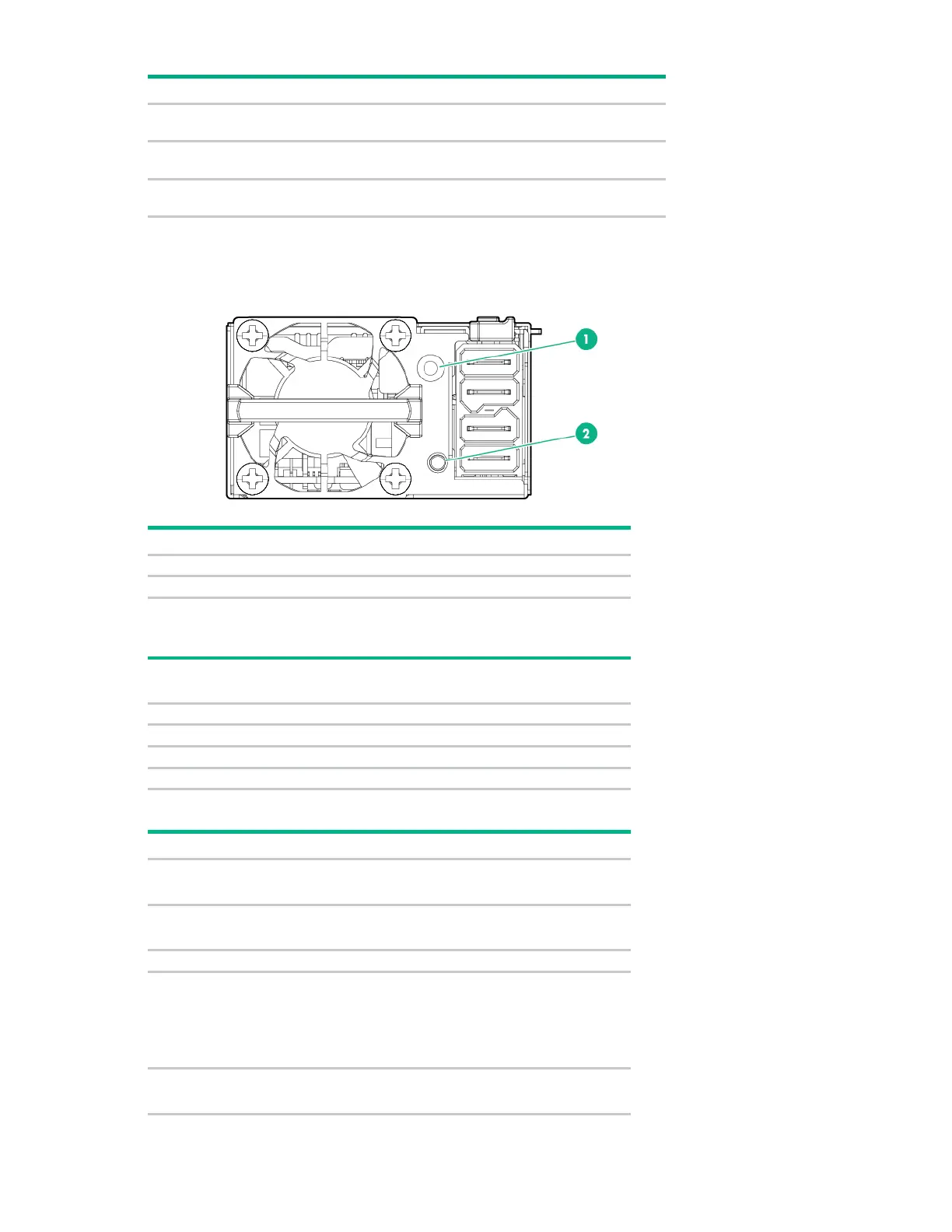

Flex slot battery backup module LEDs and buttons
Item
Description
1
FSBBU module LED
2
Battery check button
When the battery check button is pressed, the LED indicates the state of the battery. The number of times
that the LED flashes indicates the state of charge.
# of LED
flashes
State of charge (%)
0
< 5
1
<= 30
2
31 – 69
3
>= 70
The state of the LED indicates the FSBBU operating mode.
LED Mode/State
Off
•
Ship/storage mode
•
Cycle power operating
Flashing amber
•
Battery diagnostic
•
Active mode
Solid amber
Online mode and charger is ON
Flashing green Discharge mode
•
RSOC—70-100% frequency=0.5Hz; duty=0.5
•
RSOC—31-69% frequency=1Hz; duty=0.5
•
RSOC—0-30% frequency=1.5Hz; duty=0.5
Solid green
•
Online mode and charger is OFF
•
Battery is fully charged
