Hardware options installation 118
o

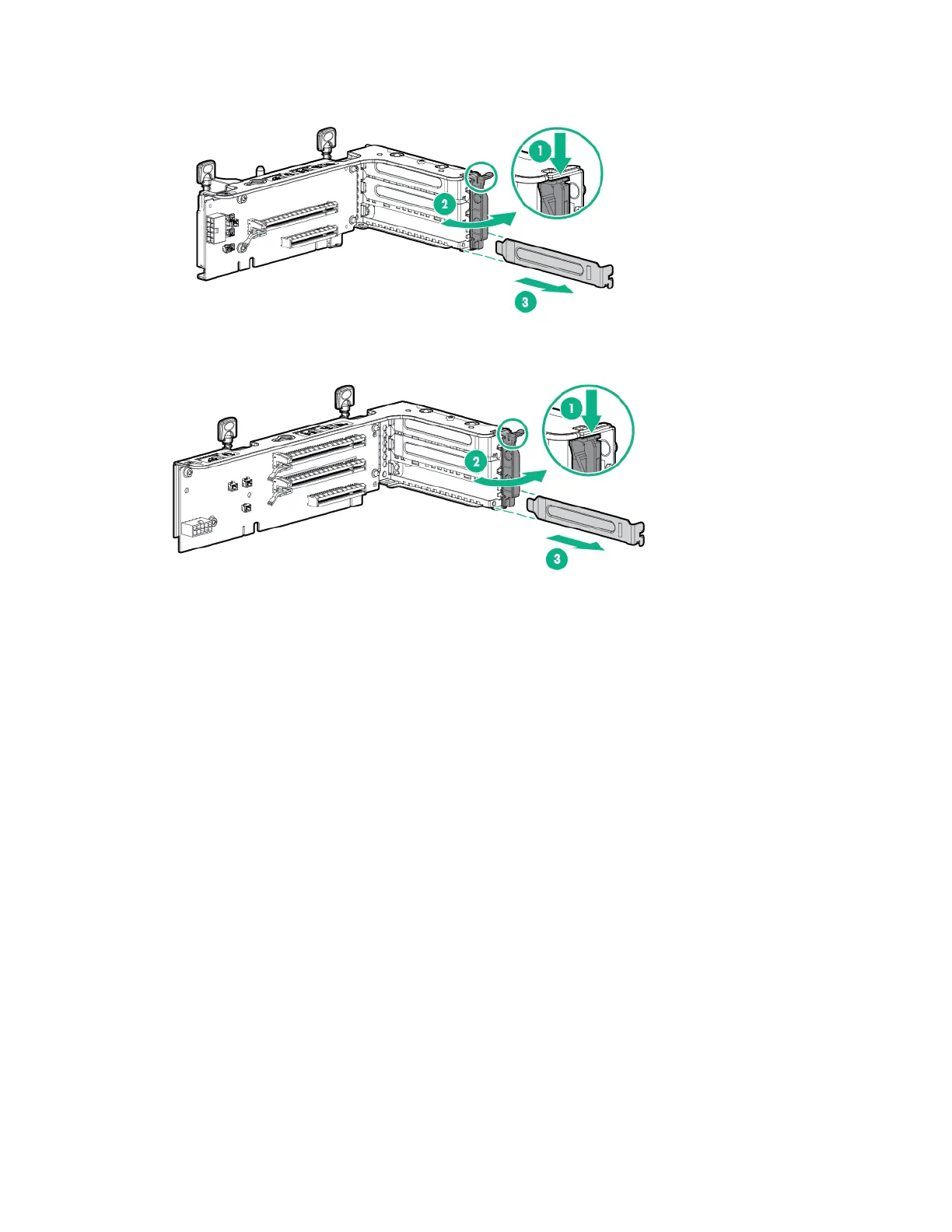

Optional primary PCIe riser cage
o Secondary PCIe riser cage
To replace the component, reverse the removal procedure.
Installing an expansion board
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 26).
o Remove the server from the rack (on page 27).
4. Remove the access panel (on page 27).
5. Remove the PCI riser cage (on page 30).
6. Remove the expansion slot blank ("Installing an expansion board" on page 118).
