HP ProLiant DL380 Gen9

Component identification 19
Item
LED definitions
3
•
Solid or flashing green = Power is available to the NVDIMM. Do not
remove the NVDIMM.
•
Off = Power is not available to the NVDIMM.

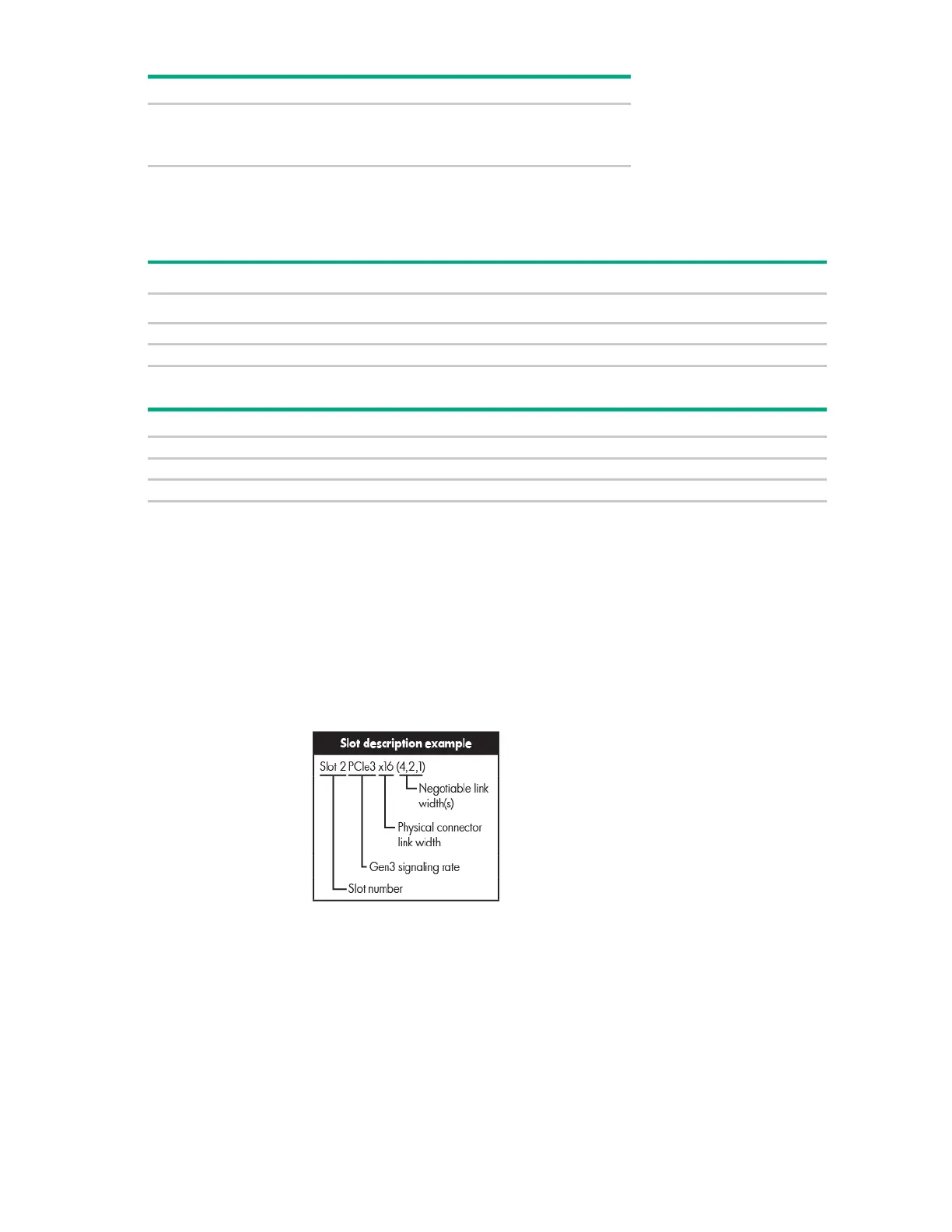

Non-hot-plug PCI riser board slot definitions
• Primary riser cage connector, connected to processor 1
PCIe 3-slot riser cage* Optional PCIe 2-slot x16 riser cage
1 - FL/FH
PCIe3 x16 (8,4,2,1)
—
2 - HL/FH
PCIe3 x16 (8,4,2,1)
PCIe3 x16 (16,8,4,2,1)
3 - HL/FH
PCIe3 x8 (8,4,2,1)
PCIe3 x8 (8,4,2,1)
• Secondary riser cage connector, connected to processor 2 (processor 2 must be installed)
PCIe 3-slot riser cage*
4 - FL/FH
PCIe3 x16 (16,8,4,2,1)
5 - HL/FH
PCIe3 x16 (16,8,4,2,1)
6 - HL/FH
PCIe3 x8 (8,4,2,1)
*The server ships with one PCIe3 riser cage installed in the primary riser cage connector.
Notes:
• "Primary" denotes the riser cage is installed in the primary riser connector.
• "Secondary" denotes the riser cage is installed in the secondary riser connector.
• Installing the riser cages listed in the table above in either the primary or secondary riser connectors
determines the form factor of the PCI expansion boards supported by those riser cages.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height.
