Hardware options installation 99
Two-bay SFF front drive cage option
The front bay installation requires a universal media bay to be installed.
To install the component:
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 26).
o Remove the server from the rack (on page 27).
4. Remove the access panel (on page 27).

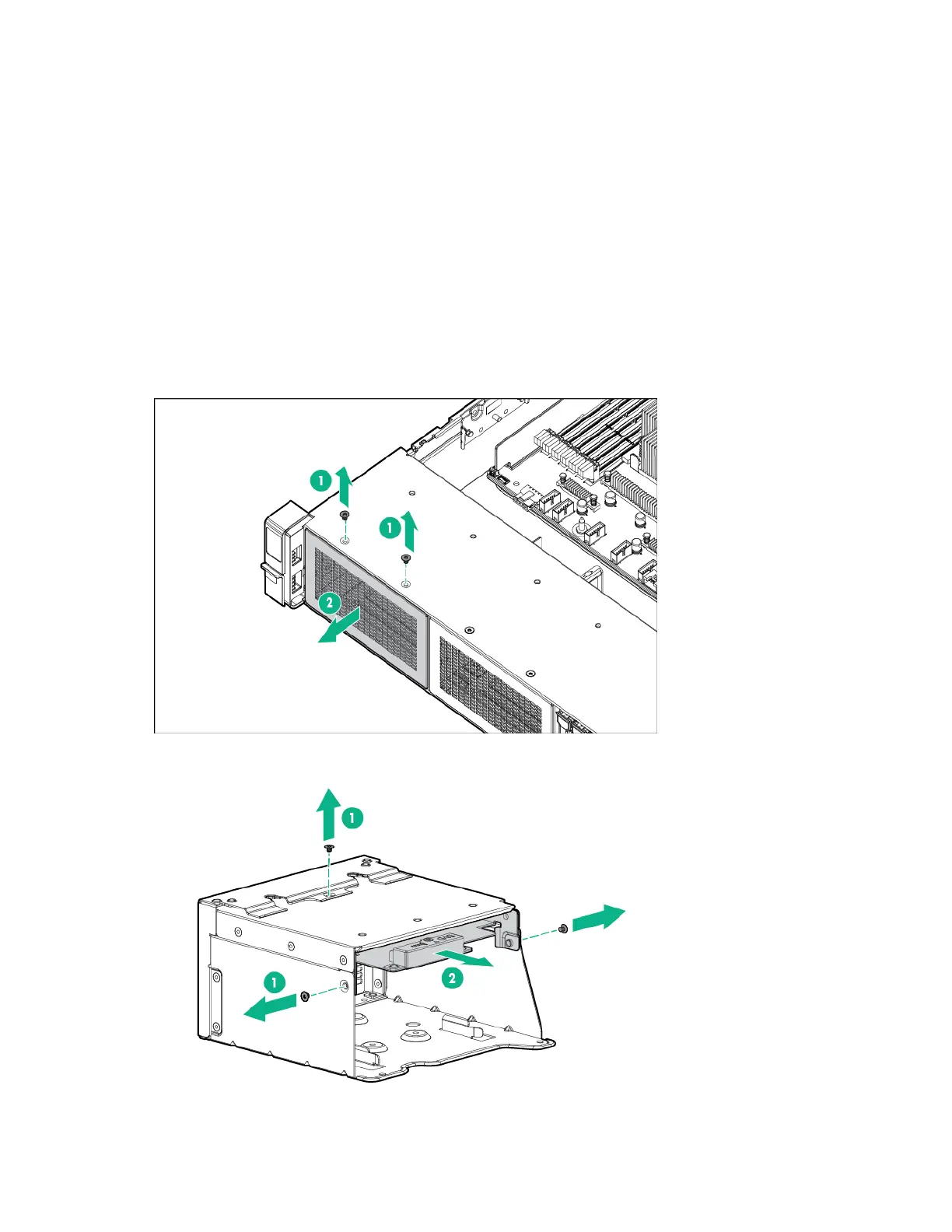

5. Remove the front bay blank.
6. Remove the optical disk drive tray from the universal media bay.
