Cabling 162

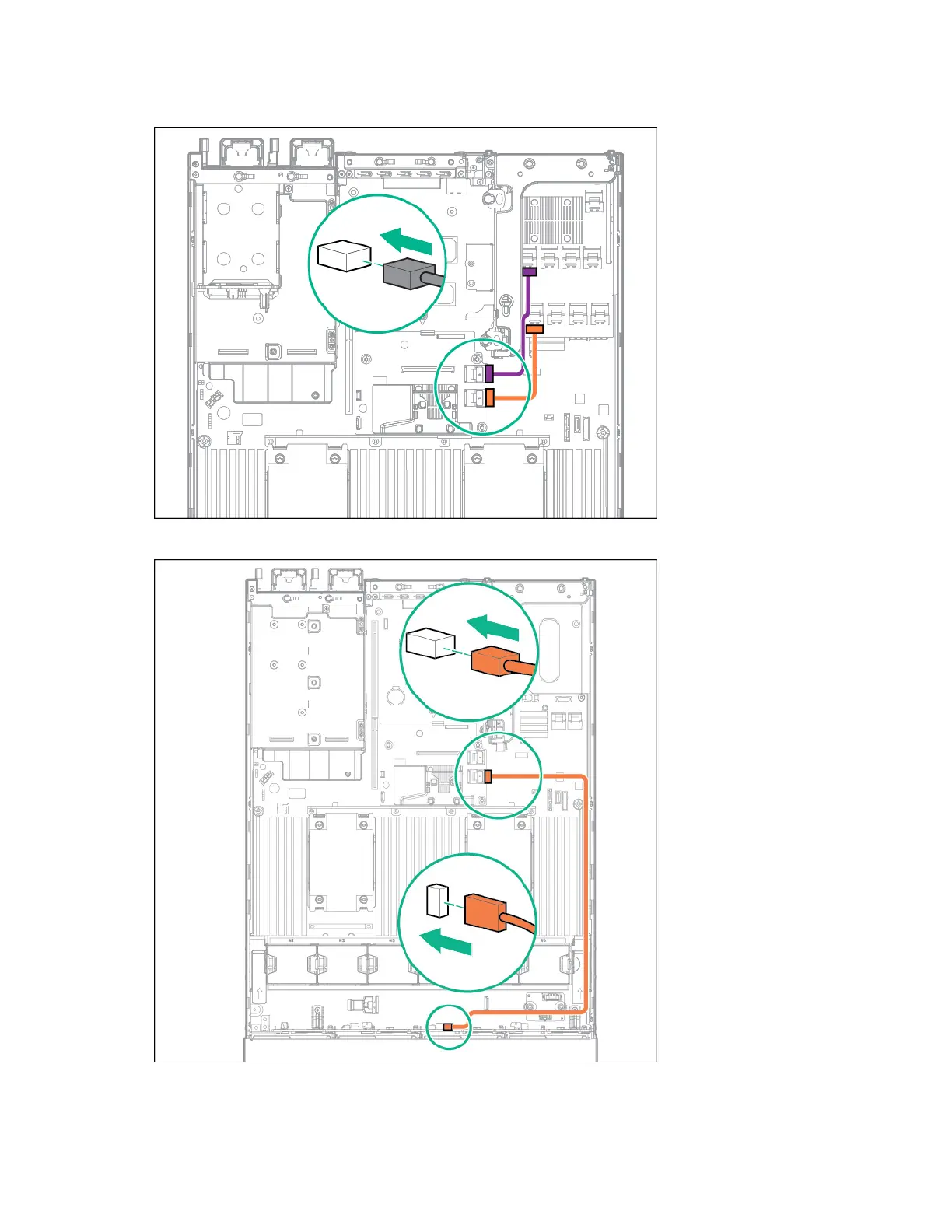

• 24SFF drives at the front and 2SFF drives at the rear of the server — Connect the P440ar controller
cables to the 12G SAS Expander port 1 and port 2.
• 4LFF drive configuration — Connect the 4LFF Mini-SAS cable to the P440ar controller.
