HP ProLiant DL380 Gen9 - Page 52

Hardware options installation 52
o

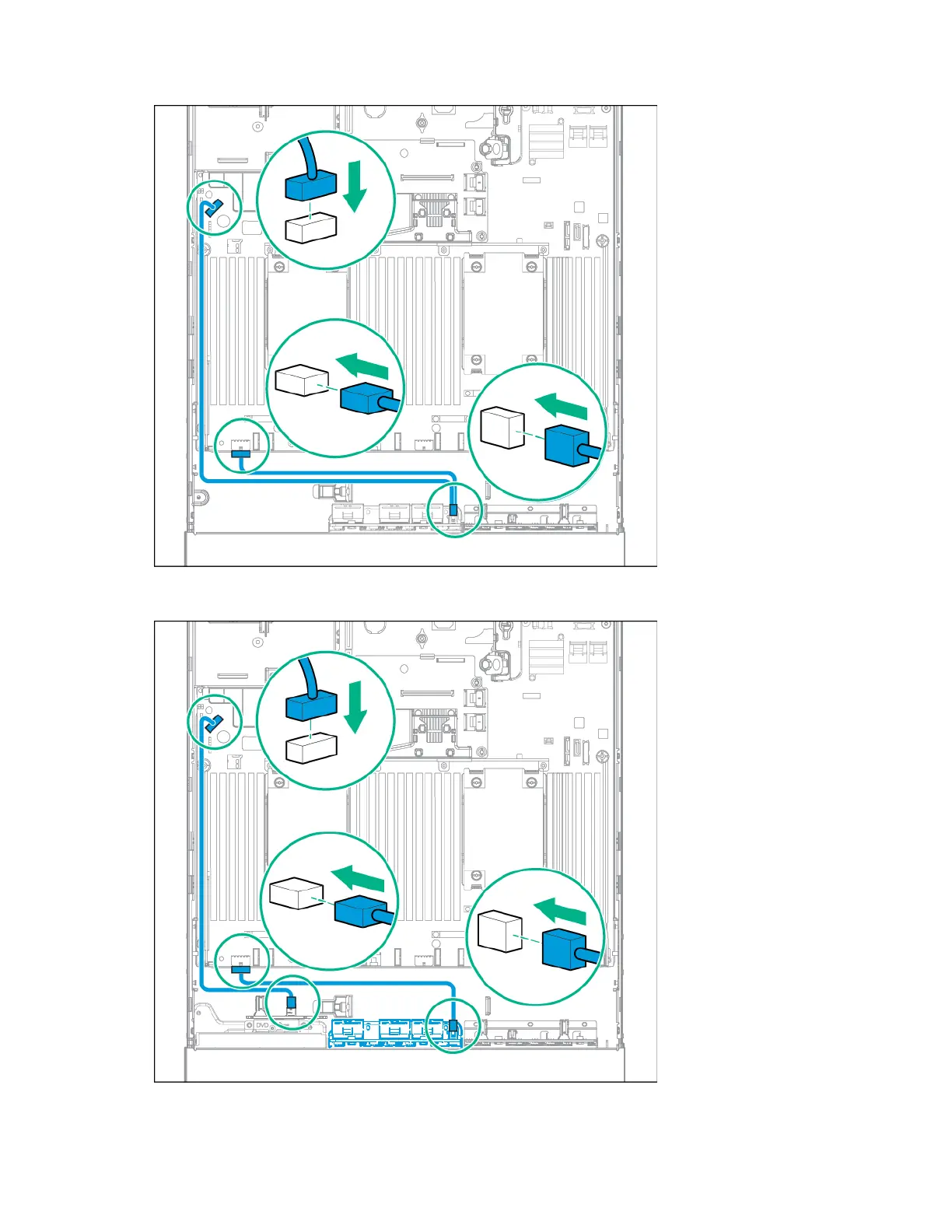

Drive bay 1 is empty — Use the NVMe power cable (776392-001).
o 8SFF drive cage installed in bay 1 and 2SFF drives in the front of the server — Use the 8SFF
drive cage power cable (776399-001) and the 2SFF drives-front power cable (795156-001).
11. Remove the primary PCI riser cage ("Remove the PCI riser cage" on page 30).
