Hardware options installation 79
6.

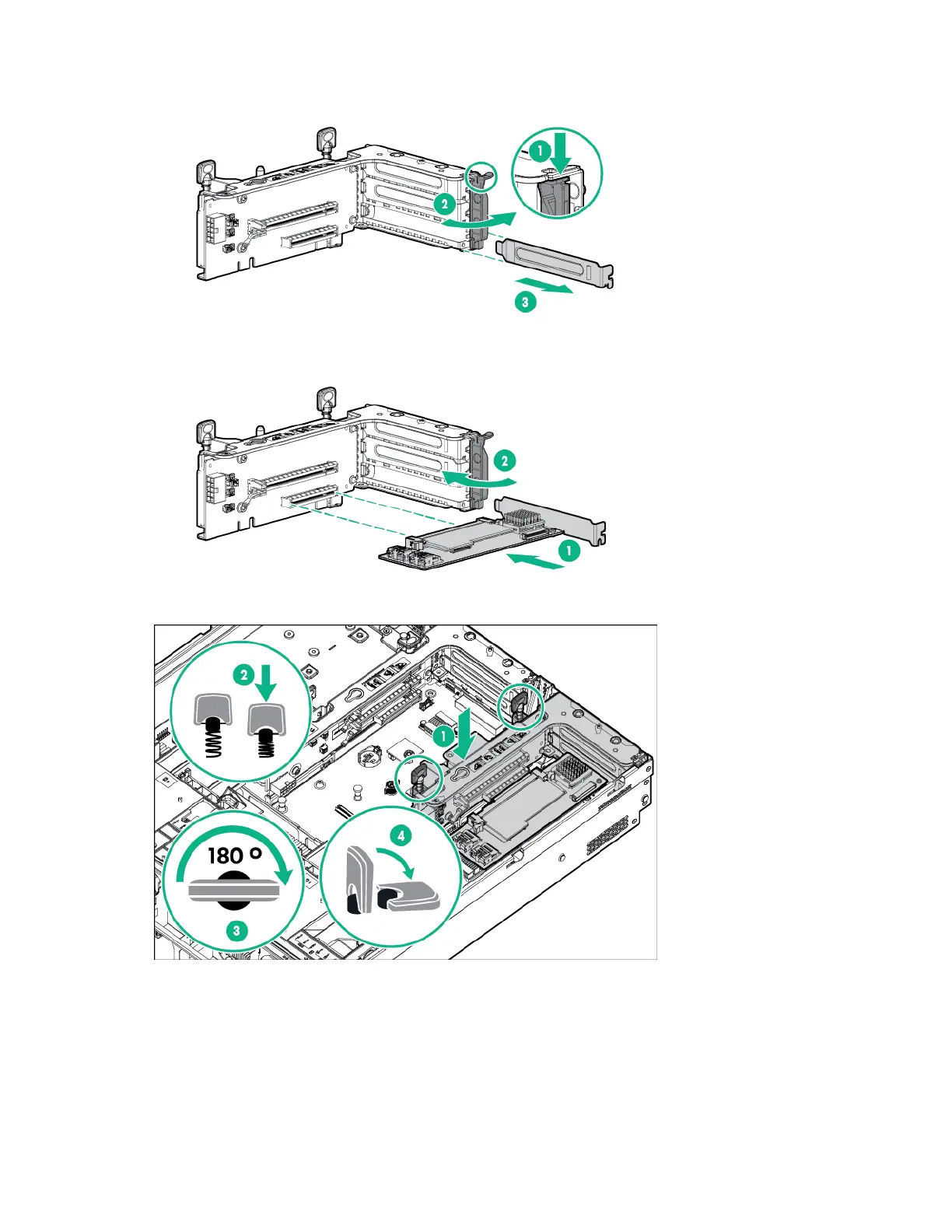

Remove the blank from the optional 2-slot PCI riser cage.
7. Install an optional expansion board into the PCI riser cage.
8. Install the optional 2-slot PCI riser cage.
9. Connect any required internal or external cables to the expansion board. See the documentation that
ships with the expansion board.
10. Install the access panel (on page 28).
11. Slide the server into the rack.
12. Connect each power cord to the server.
13. Connect each power cord to the power source.
