Hardware options installation 81
6.

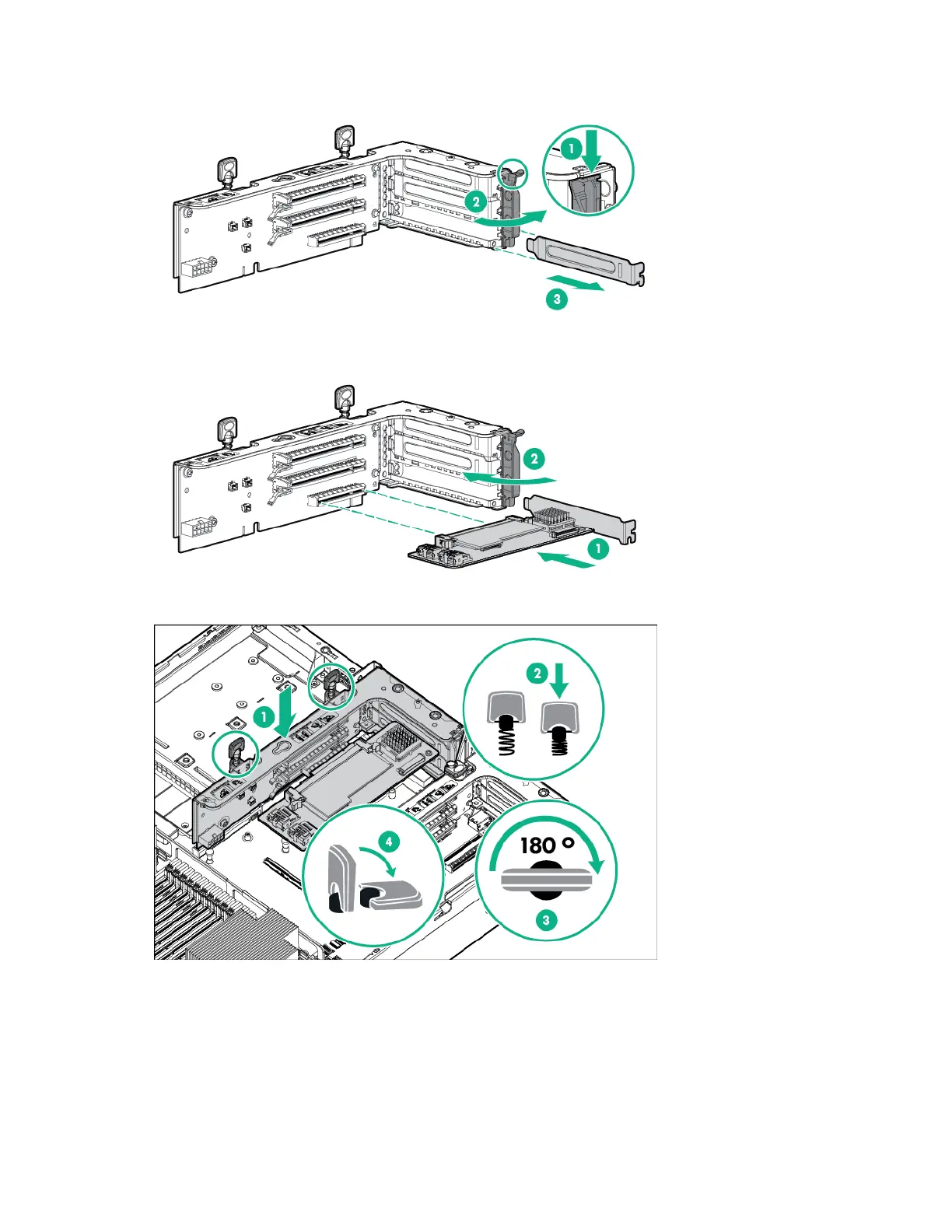

Remove the blank from the optional 3-slot PCI riser cage.
7. Install an expansion board into the PCI riser cage.
8. Install the optional 3-slot PCI riser cage.
9. Install the access panel (on page 28).
10. Slide the server into the rack.
11. Connect each power cord to the server.
12. Connect each power cord to the power source.
13. Power up the server ("Powering up the server" on page 26).
