HP ProLiant ML150

Replacing Parts

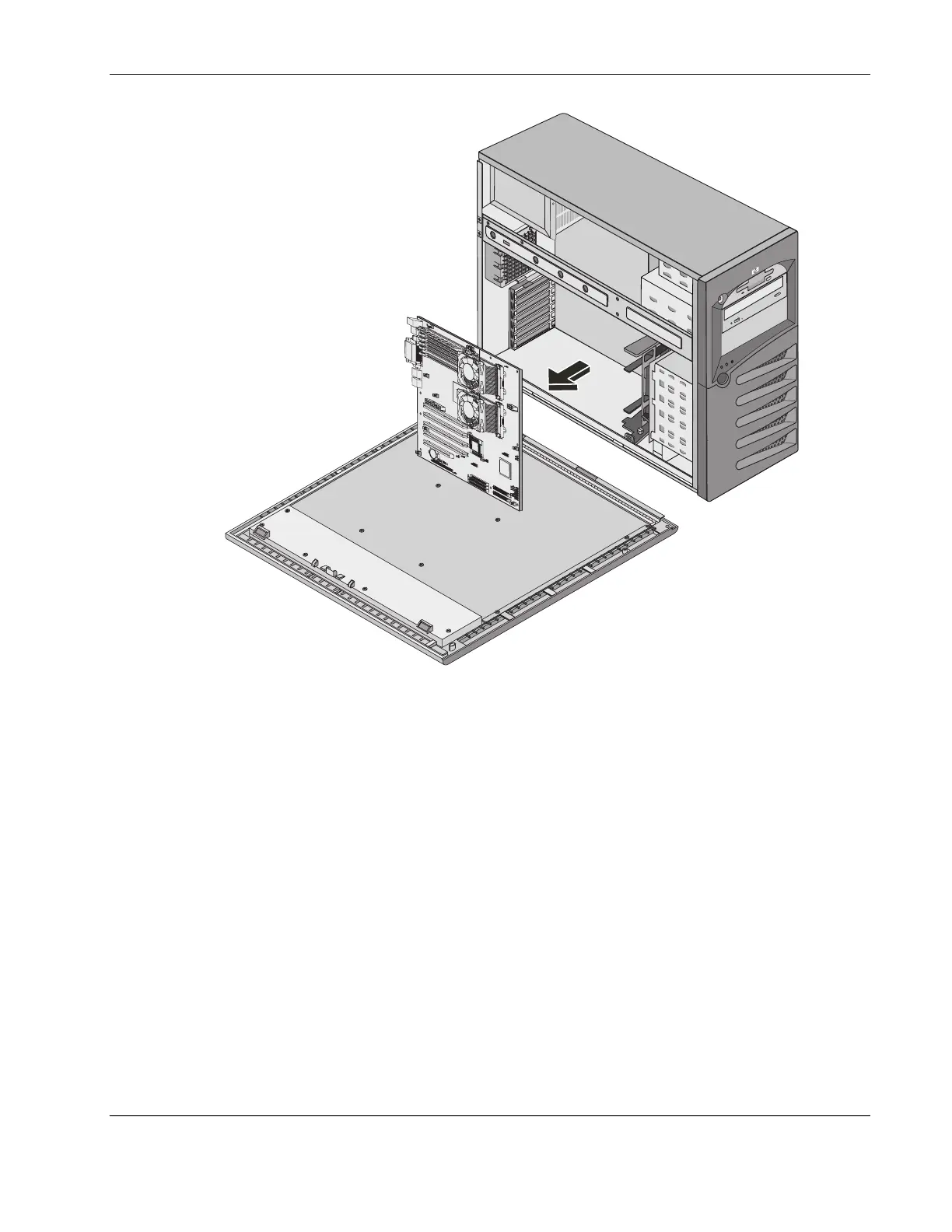

Figure 5-4: Removing system board
13. Place the system board on an anti-static pad and record all jumper connections and
settings.
14. Remove memory and processors. Place components on an anti-static pad.
HP ProLiant ML150 Server Operations and Maintenance Guide 5-7
HP CONFIDENTIAL Codename: Stone Soup Part Number: 343329-001 Last Saved On: 8/14/03 10:30 AM
