Removal and Replacement Procedures
Front Bezel
WARNING: To reduce the risk of personal injury and to prevent damage to the
equipment, before removing the front bezel, be sure that the server is powered down,
all cables are disconnected from the back of the server, and the power cord is
disconnected from the grounded (earthed) AC outlet.
To remove the front bezel:
1. Complete the preparation procedures. Refer to “Preparation Procedures” in this chapter.
2. Pull up on the latch at the bottom of the front bezel, applying enough pressure to release
the latch from the chassis (1).
3. Swing the bezel upward, and then slide it out and away from the chassis (2). You may
need to exert a small amount of force to release the bezel from the chassis.

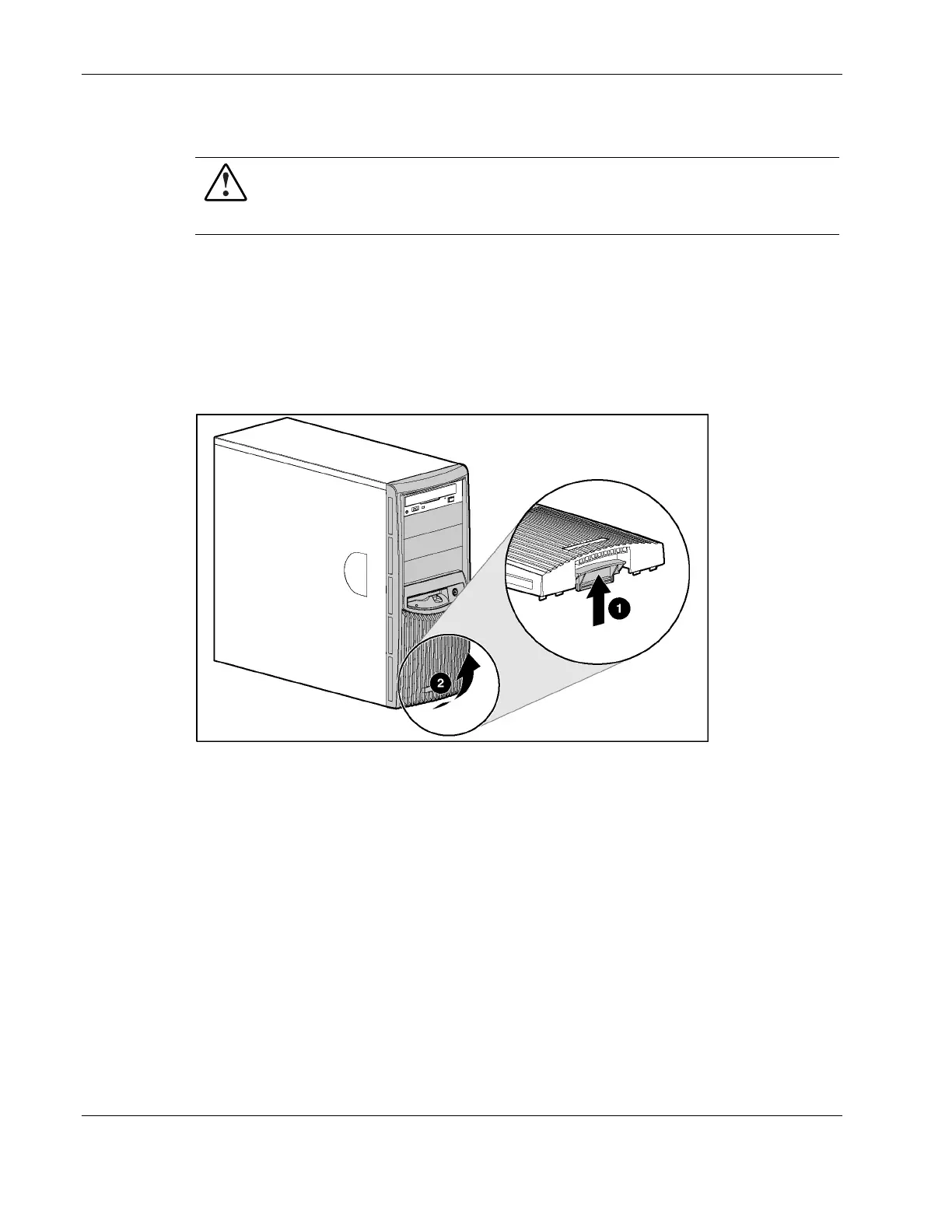

Figure 2-1: Removing the front bezel
NOTE: When replacing the front bezel, be sure that the top hinge points are properly placed in the
chassis before rotating the front bezel back into its original position.
To replace the front bezel, reverse steps 2 and 3.
