Connectors, Switches, and LEDs
Rear Panel Connectors
Figure 4-3 and Table 4-3 identify the rear panel connectors for the server.

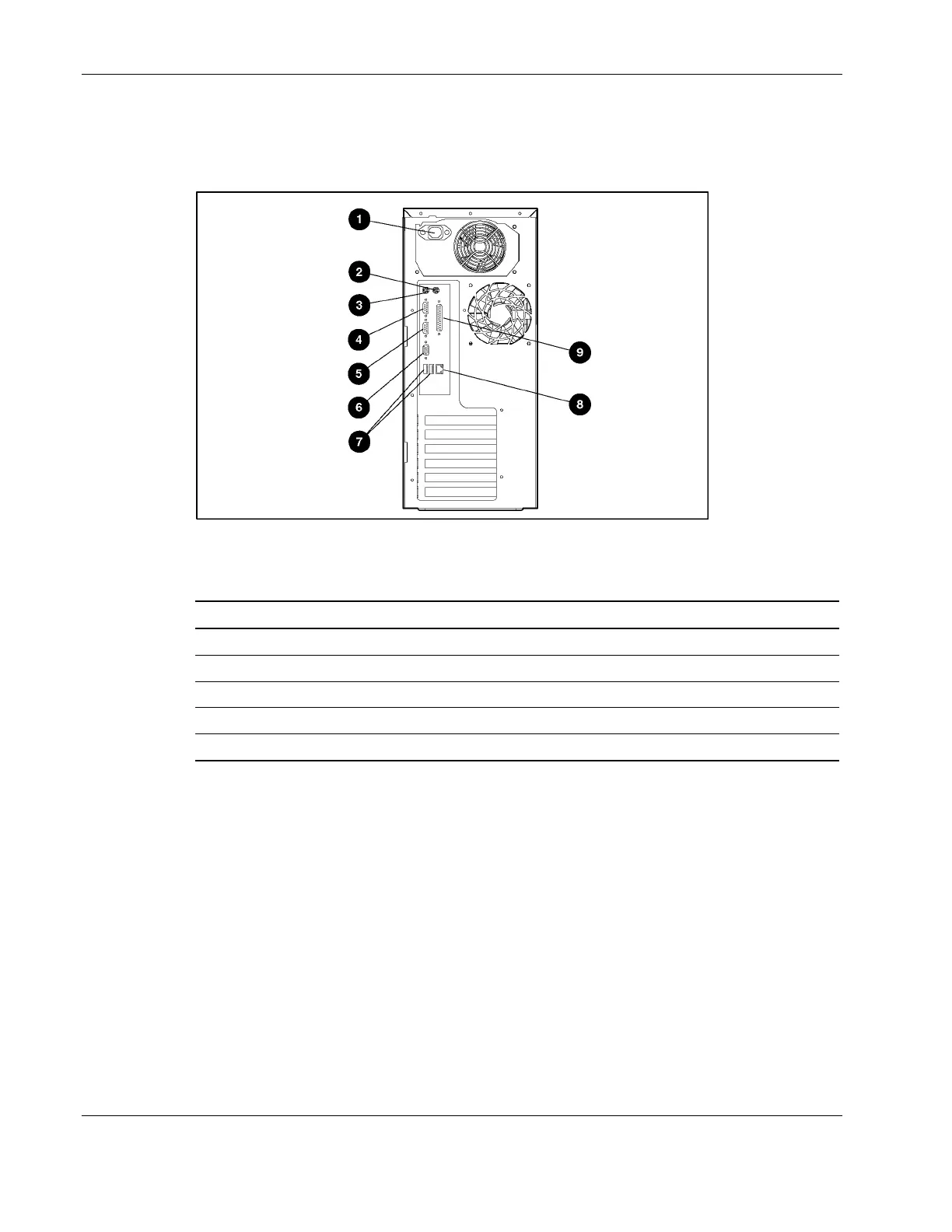

Figure 4-3: Rear panel connectors
Table 4-3: Rear Panel Connectors
Item Description Item Description
1 Power cord connector 6 Video connector
2 Mouse connector 7 USB ports
3 Keyboard connector 8 RJ-45 Ethernet connector
4 Serial port connector B 9 Parallel port
5 Serial port connector A
4-6 HP ProLiant ML310 Server Maintenance and Service Guide
