Removal and Replacement Procedures
5. Push down on the retainer clip levers, and then pull up to remove the levers from the
heatsink/CPU fan assembly. Figure 2-29 illustrates one side of the heatsink/CPU fan
assembly.

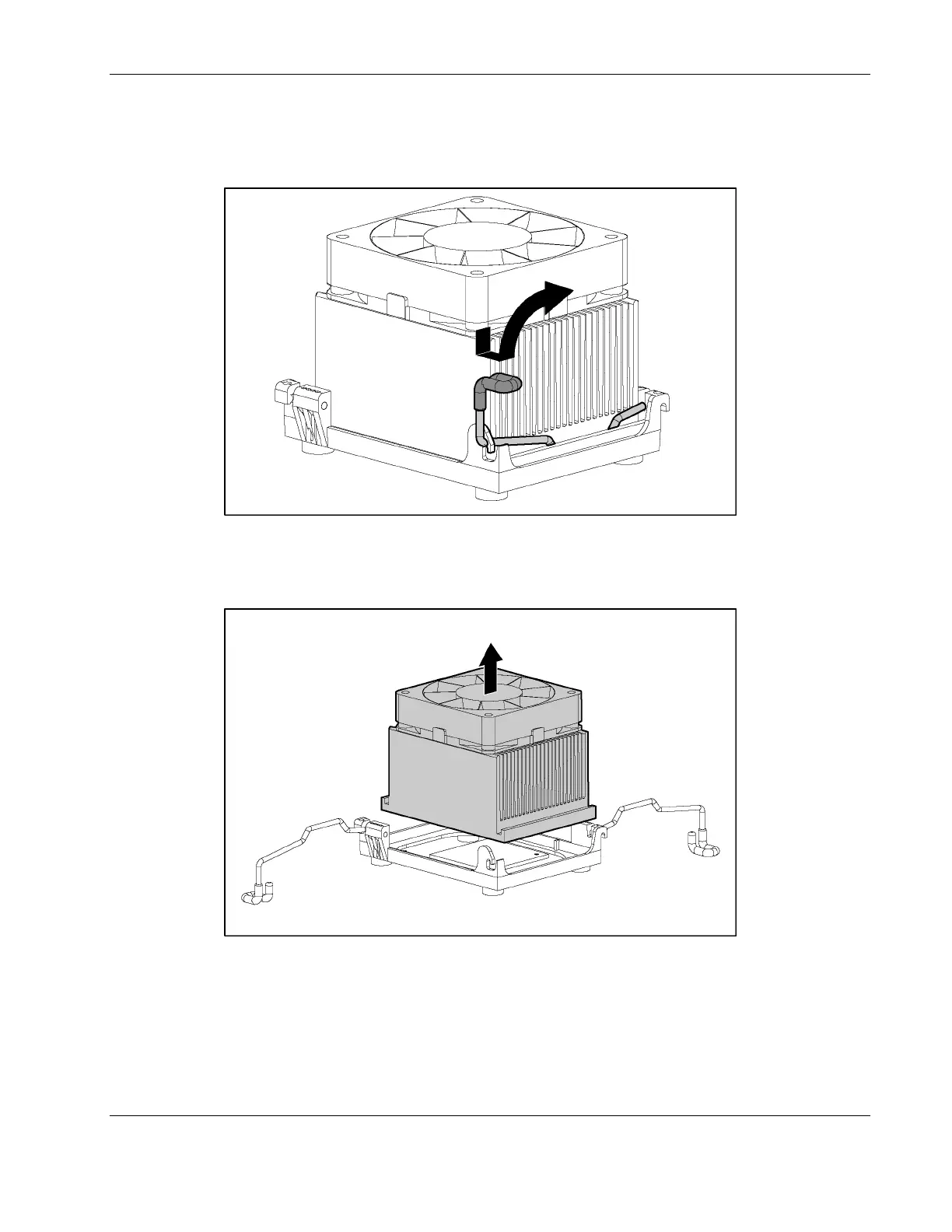

Figure 2-29: Removing the levers from the heatsink/CPU fan
assembly
6. Lift the heatsink from the processor.
Figure 2-30: Removing the heatsink/CPU fan assembly
HP ProLiant ML310 Server Maintenance and Service Guide 2-35
