Removal and Replacement Procedures

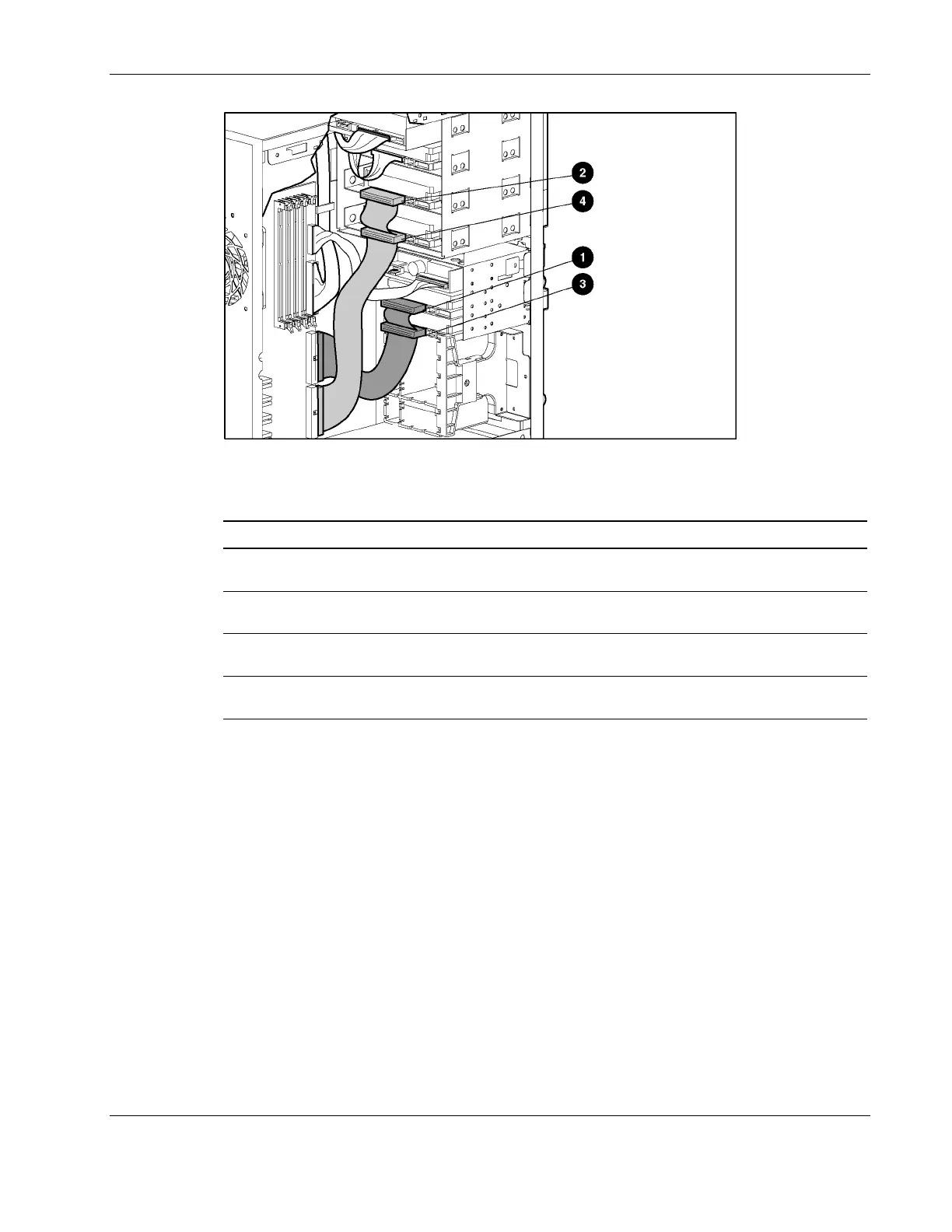

Figure 2-8: ATA cable routing
Table 2-2: ATA Cabling Routing
Item Channel/Cable Cable Connector Drive Location
1 ATA/100 RAID primary
controller
Device 0 Hard drive bay 2
2 ATA/100 RAID secondary
controller
Device 0 Media bay 3
3 ATA/100 RAID primary
controller
Device 1 Hard drive bay 3
4 ATA/100 RAID secondary
controller
Device 1 Media bay 4
HP ProLiant ML310 Server Maintenance and Service Guide 2-13
