Removal and Replacement Procedures
System Fan
To remove the system fan:
1. Complete the preparation procedures. Refer to “Preparation Procedures” in this chapter.
2. Remove the access panel. Refer to “Access Panel” in this chapter.
3. Disconnect the fan power cable from the system board fan connector.

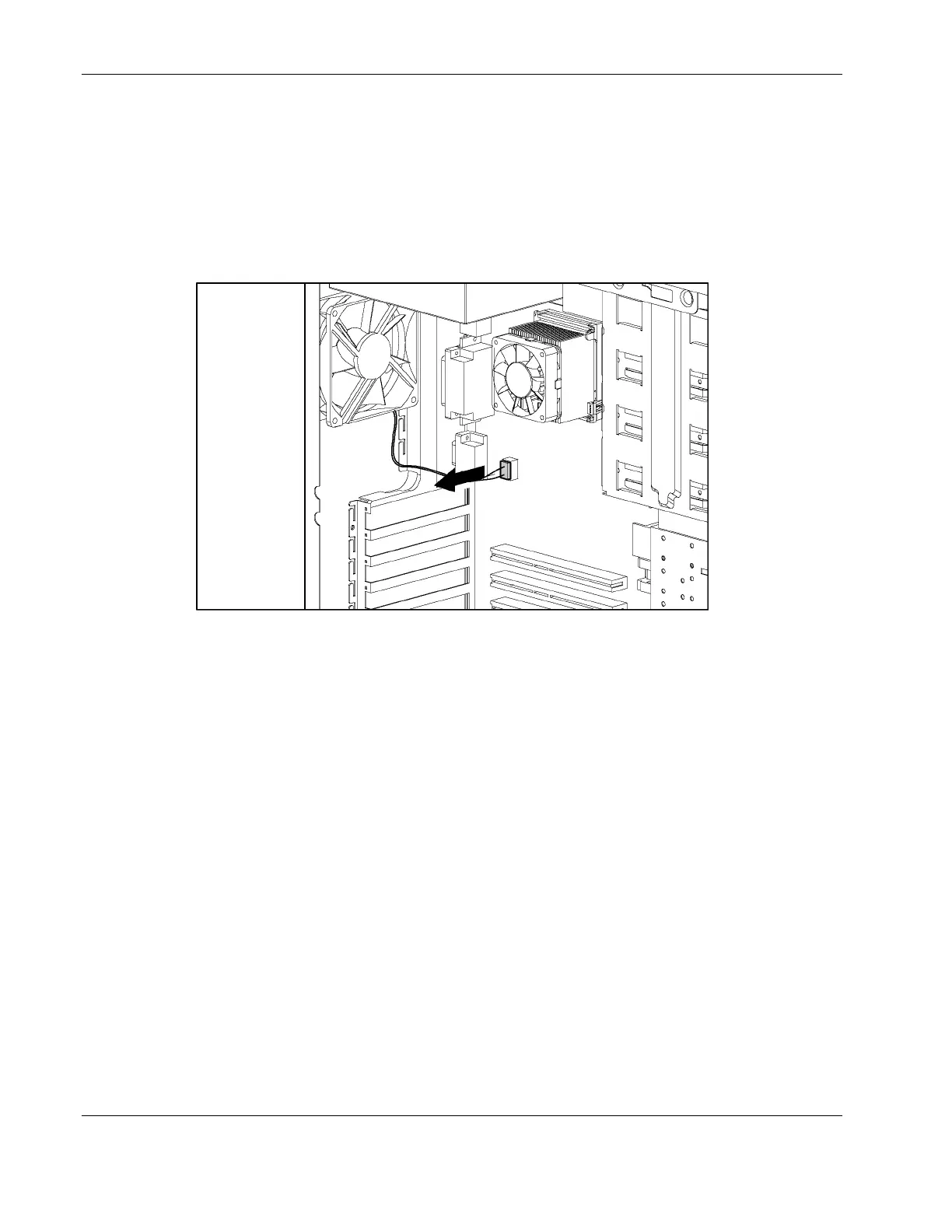

Figure 2-5: Disconnecting the fan power cable from the system
board fan connector
2-10 HP ProLiant ML310 Server Maintenance and Service Guide
