Removal and Replacement Procedures
7. Raise the processor socket lever (1).
IMPORTANT: The processor socket lever must be perpendicular to the system board to
unlock the processor unit.
8. Lift the processor out of the socket (2).

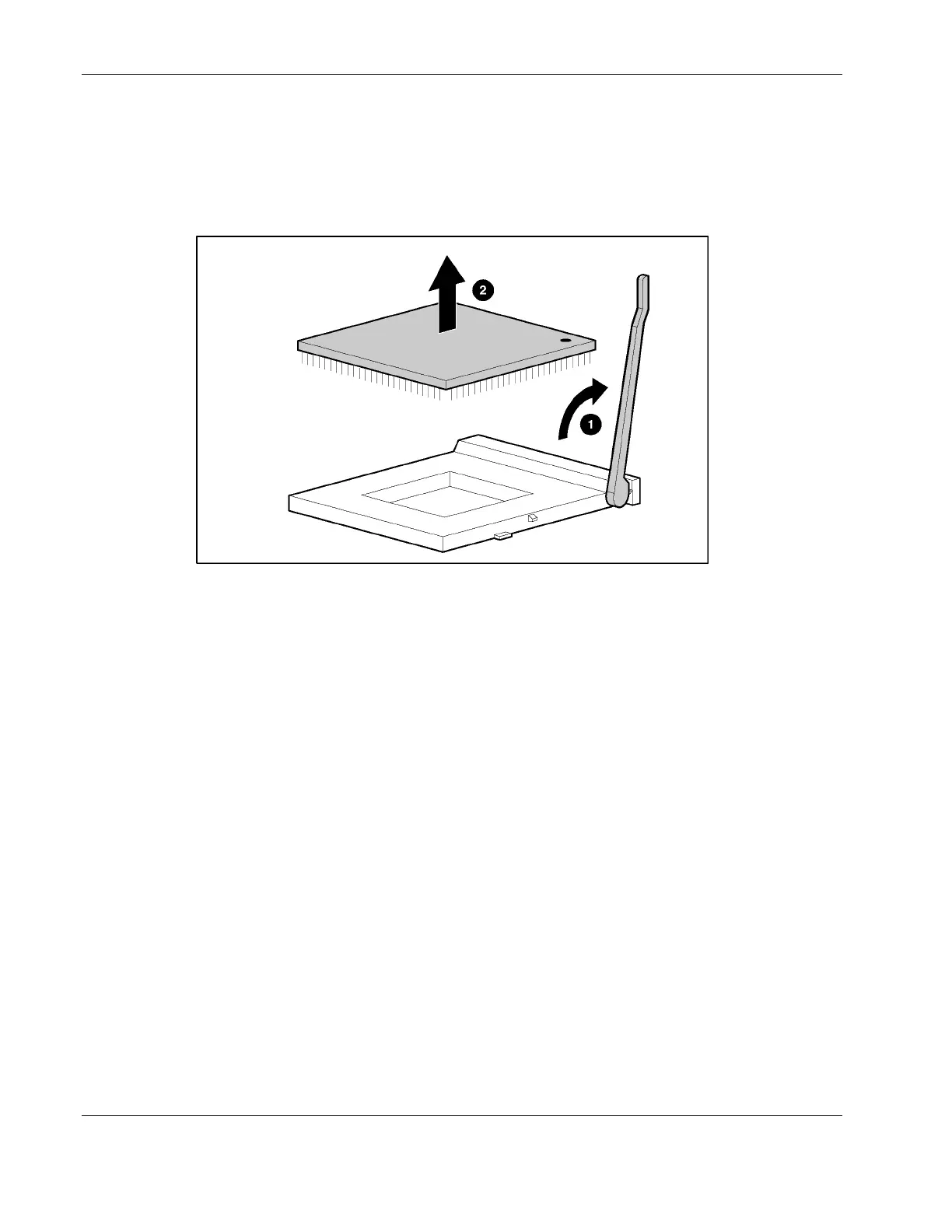

Figure 2-31: Removing the processor
9. Lower the processor socket lever.
10. Reinstall the access panel and the bezel.
To replace the processor, reverse steps 2 through 10.
