Removal and Replacement Procedures
Removing a Hard Drive Compartment
To remove a hard drive compartment:
1. Complete the preparation procedures. Refer to “Preparation Procedures” in this chapter.
2. Remove the access panel. Refer to “Access Panel” in this chapter.
3. Disconnect the power and data cables from the back of all devices in the hard drive
compartment being removed.

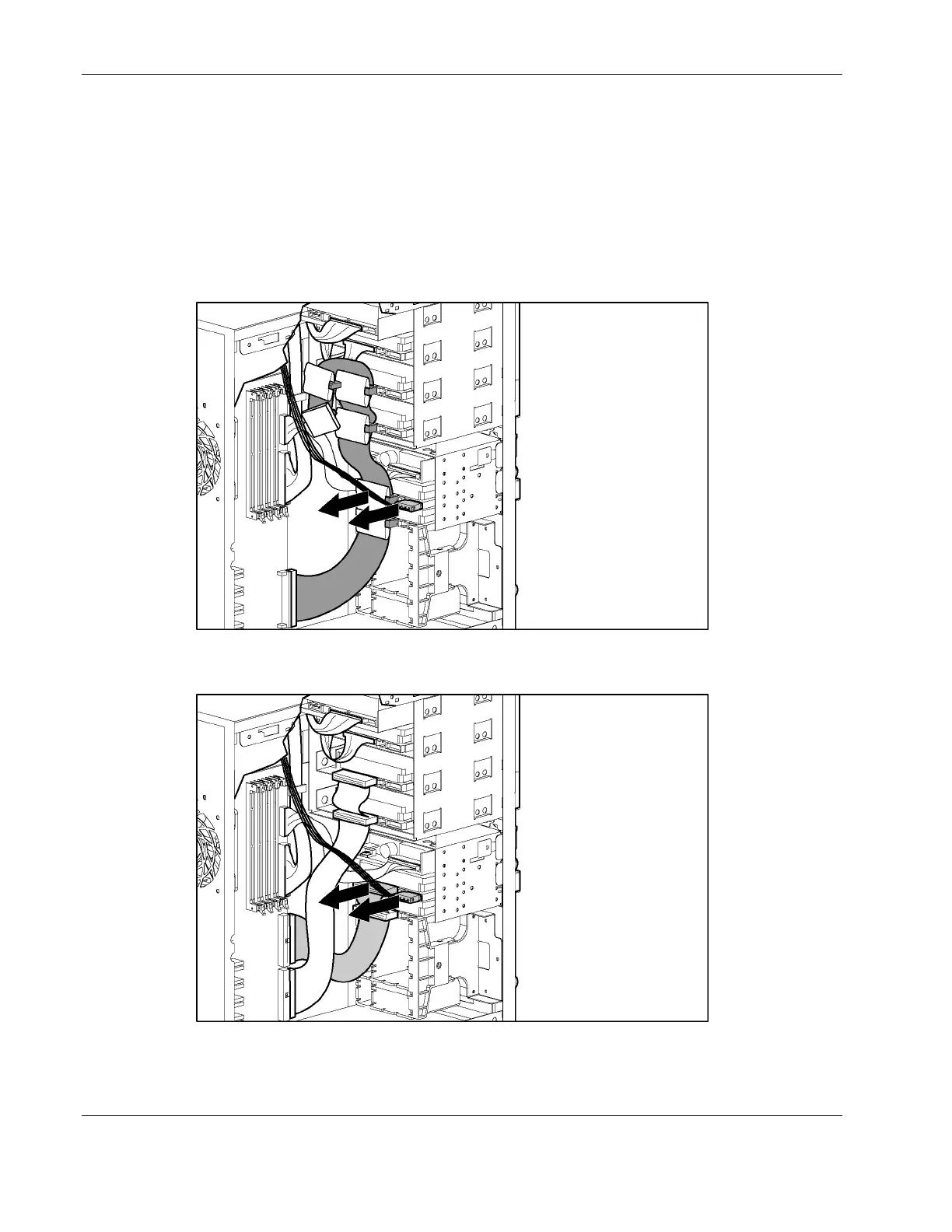

Figure 2-11: Disconnecting power and data cables from the ATA
hard drive compartment
Figure 2-12: Disconnecting power and data cables from the SCSI
hard drive compartment
