Removal and Replacement Procedures
4. Use a Torx T-15 screwdriver to remove the four mounting screws from the rear of the
server (1).
5. Pull the fan out and away from the chassis (2).

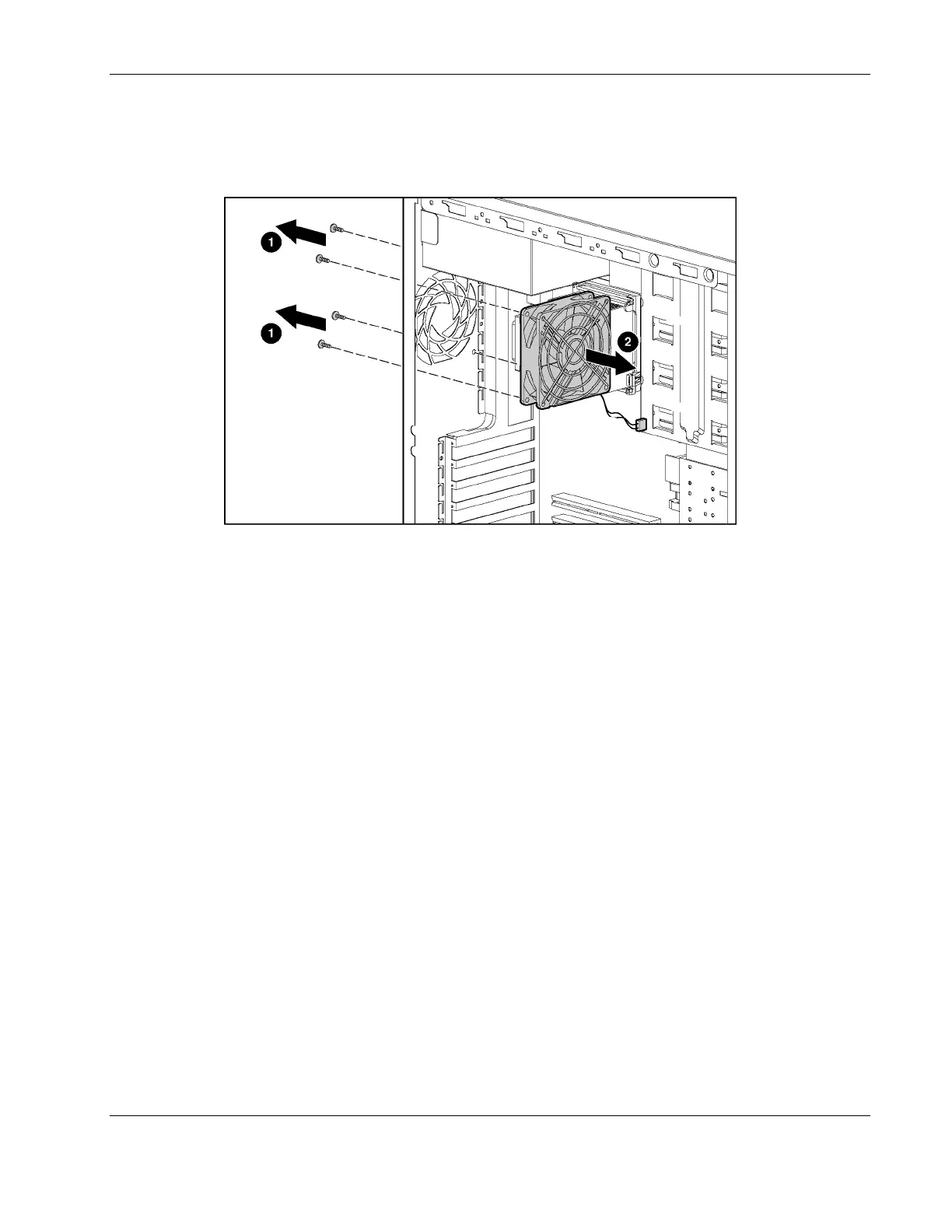

Figure 2-6: Removing the system fan
To replace the system fan, reverse steps 2 through 5.
HP ProLiant ML310 Server Maintenance and Service Guide 2-11
