Removal and Replacement Procedures
6. Remove the screws from the bottom of the device (1).
7. Remove the device from the tray (2).

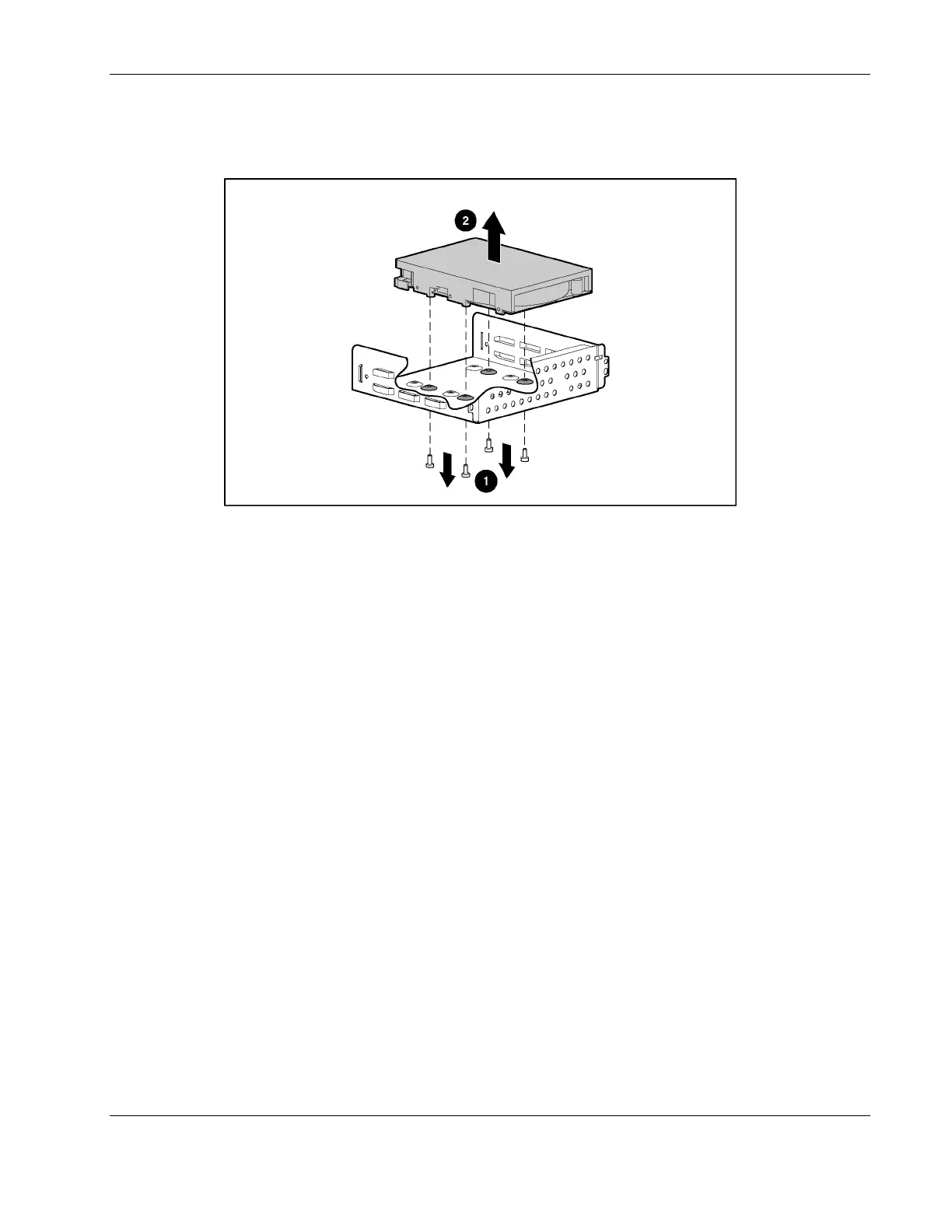

Figure 2-21: Removing a device from the removable media bay
To replace a removable media bay device, reverse steps 2 through 7. Refer to Figure 2-15 to
locate the hard drive screws.
HP ProLiant ML310 Server Maintenance and Service Guide 2-27
