HP ProLiant ML310 Maintenance And Service Guide

Removal and Replacement Procedures
System Board
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure that
you are properly grounded (earthed) before beginning any installation procedure. Refer to
“Electrostatic Discharge Information” in this chapter for more information.
To remove the system board:
1. Complete the preparation procedures. Refer to “Preparation Procedures” in this chapter.
2. Remove the access panel. Refer to “Access Panel” in this chapter.
3. Remove all expansion boards seated on the system board.
4. Disconnect all cables from the system board.
5. Remove the seven screws securing the system board to the chassis (1).
6. Slide the system board away from the back of the server, and then pull the system board
out of the chassis (2).

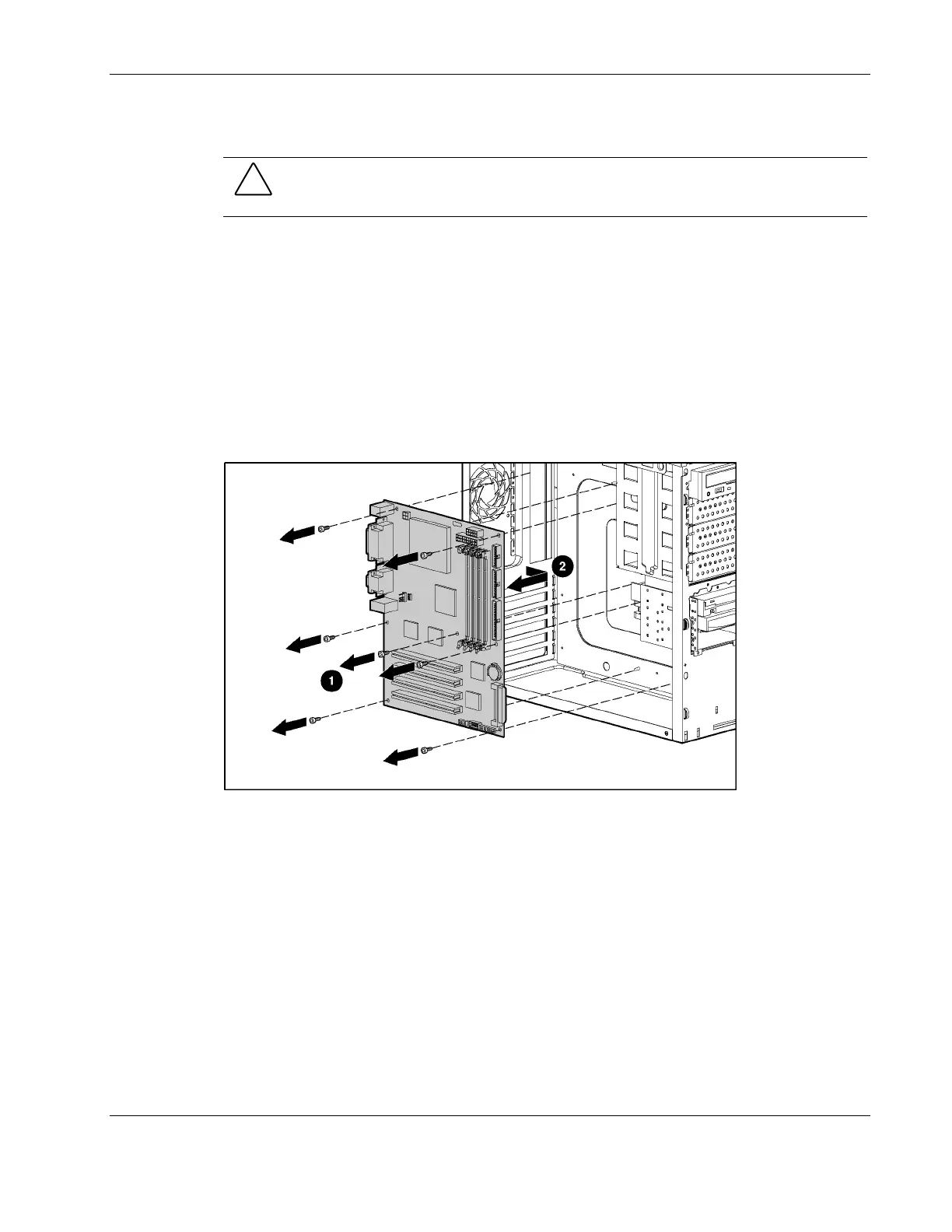

Figure 2-32: Removing the system board
To replace the system board, reverse steps 2 through 6.
IMPORTANT: The server serial number must be re-entered through RBSU after replacing the system
board. Refer to the “Re-entering the Server Serial Number” section.
HP ProLiant ML310 Server Maintenance and Service Guide 2-37

HP ProLiant ML310 Specifications

General

Form Factor	Tower
Processor Sockets	1
Maximum Memory	32GB
Memory Slots	4
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Storage	Up to 4 LFF (3.5-inch) drives
Hard Drive Interface	SATA
Network	1Gb Ethernet
Power Supply	350W
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	1 x PCIe 2.0 x1
