Removal and Replacement Procedures
Expansion Board Guide
To remove the expansion board guide:
1. Complete the preparation procedures. Refer to “Preparation Procedures” in this chapter.
2. Remove the access panel. Refer to “Access Panel” in this chapter.
3. Remove all expansion boards supported by the board guide.
4. Push in the four locking tabs (1), and then pull the guide back and away from the
chassis (2).

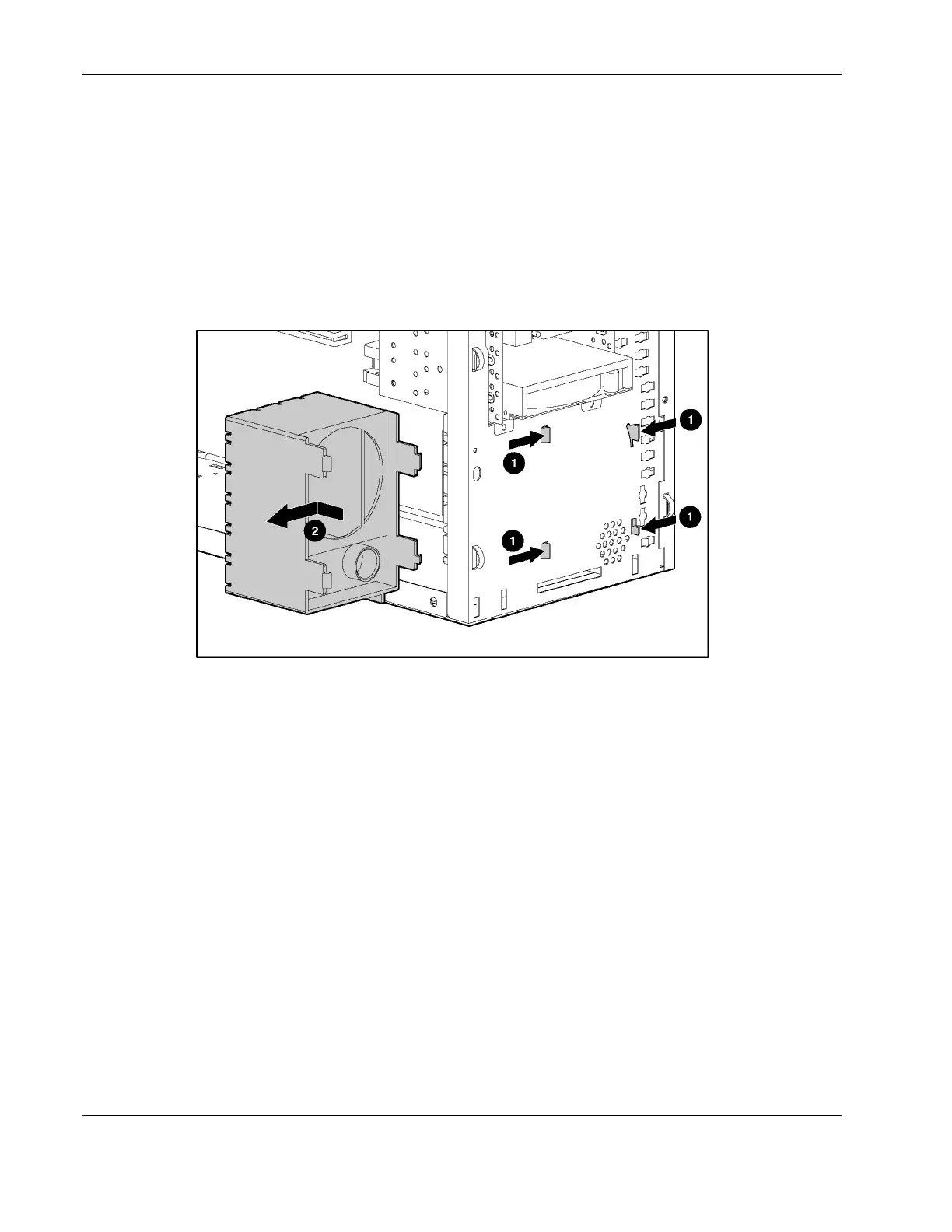

Figure 2-24: Removing the expansion board guide
To replace the expansion board guide, reverse steps 2 through 4.
