9 Module alignment mechanism
10 Module controller LEDs, from top to bottom:
• Health status, green
• Error, amber
• Unit identifier (UID), blue
11
Product serial number tag location
USB ports
The library has two USB ports — one on the OCP and one on the back panel. You can update firmware,
save or restore configuration settings, or download support tickets with a USB thumb drive in either USB
port.
The encryption kit token, which is part of the MSL Encryption Kit, is fully functional in both USB ports.
Tape drive back panels

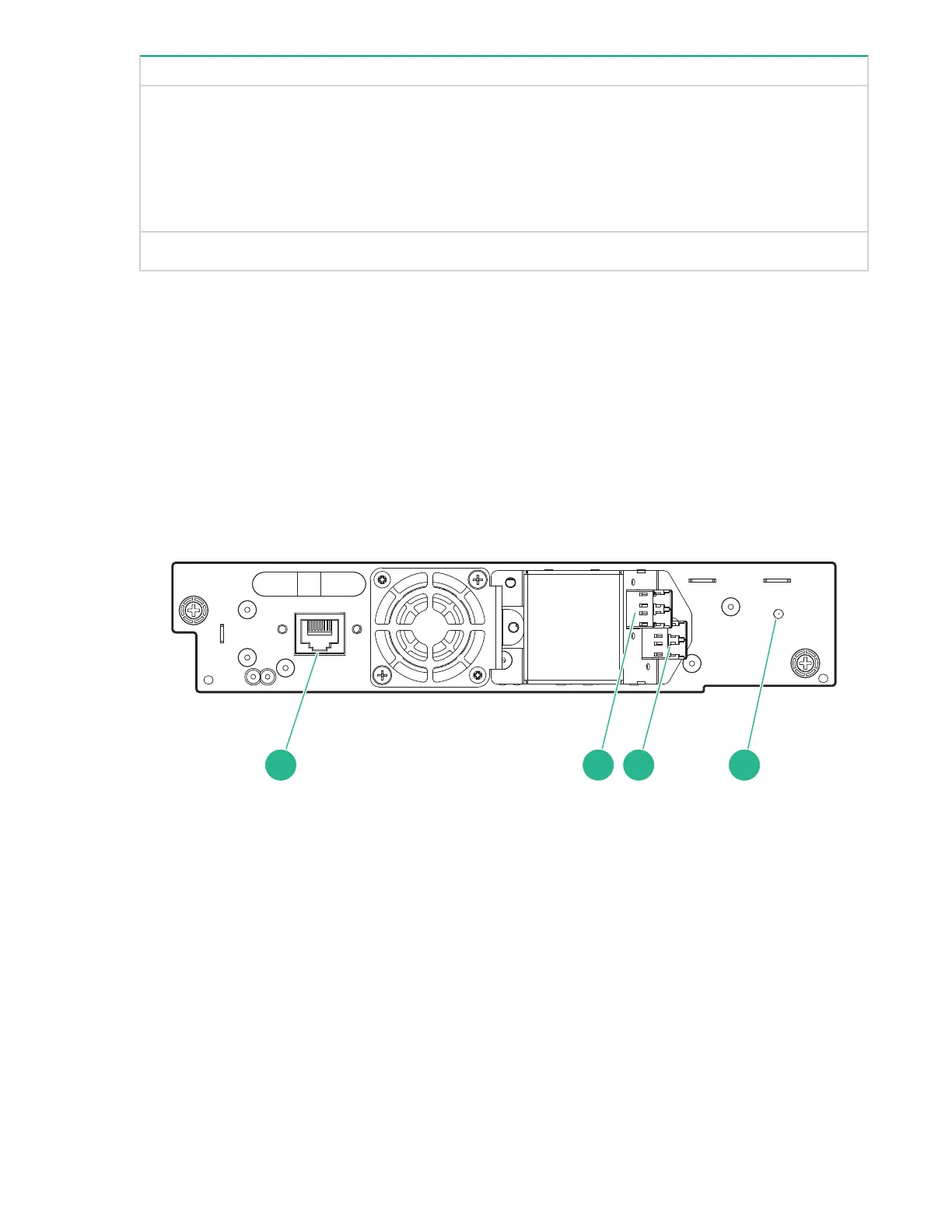

LTO-6 Fibre Channel tape drive back panel
1. Tape drive Ethernet port
2. FC port A
3. FC port B
4. Tape drive power LED, green
USB ports 11
