Installing the robotic assembly and spooling mechanism into the base
module
Procedure
1. Hold the spooling mechanism so that the end of the spooling cable that attaches to the robotic
assembly is pointing up.

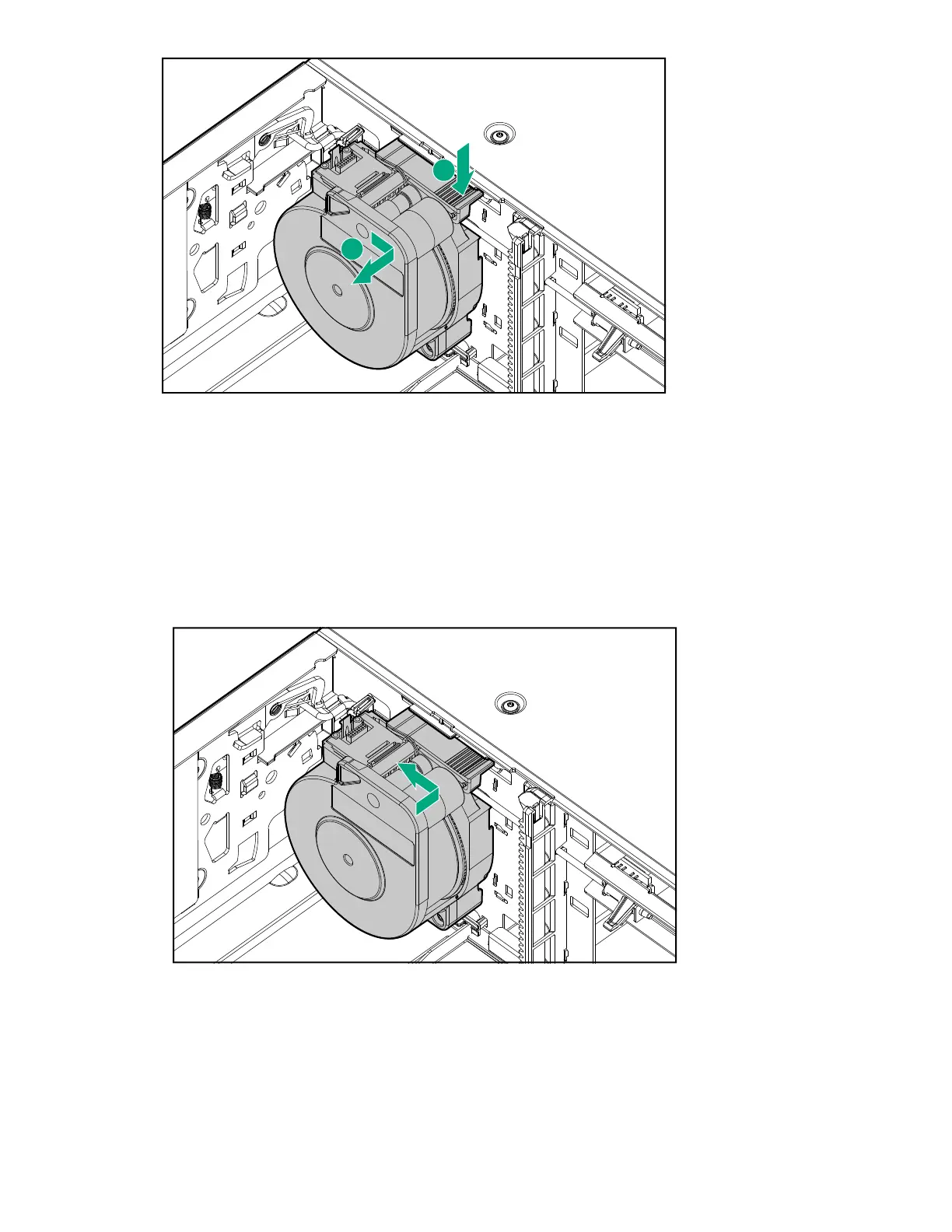

2. Align the tab on the back of the spooling mechanism with the keyhole in the back left of the metal
wall.
3. Push the spooling mechanism in and to the left until it snaps into place.
4. The robotic assembly is shipped with the robot in the unlocked position. Verify that it is unlocked.
If the robot is locked, unlock it by standing at the front of the module and moving the blue lever to the
left, then toward you, and then to the right.
156 Installing the robotic assembly and spooling mechanism into the base
module
