1. Tape drive Ethernet port
2. SAS port A
3. SAS port B
4. Tape drive power LED, green

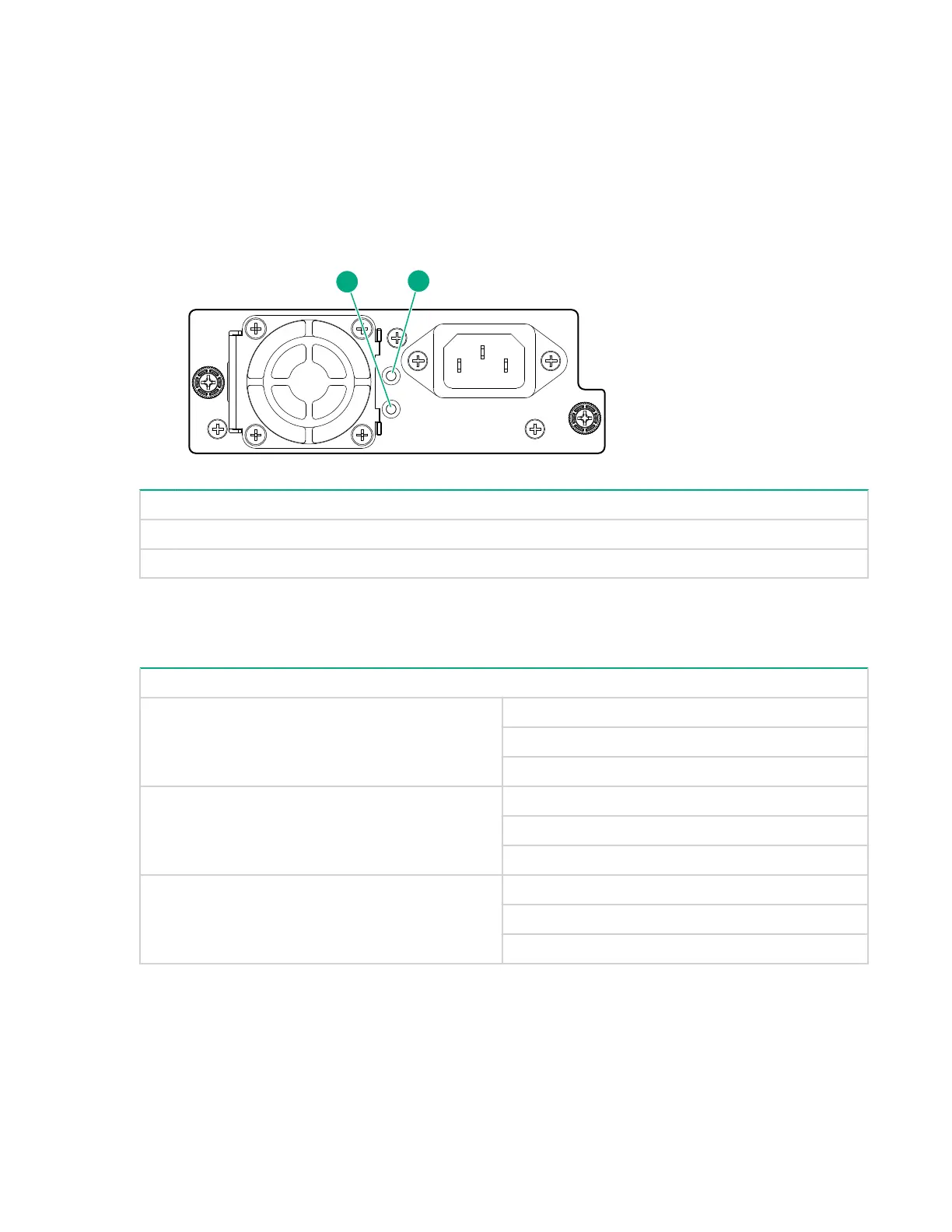

MSL3040 power supply LEDs
LED color Description
1 Green Module is powered on.
2 White AC power is connected.
Module and tape drive numbering
Modules and tape drives are numbered from the bottom of the library up, starting with the number one.
Example module numbering Example tape drive numbering
Module 3 Drive 5
(empty)
Drive 4
Module 2 (empty)
Drive 3
(empty)
Module 1 (empty)
Drive 2
Drive 1
MSL3040 storage slots
Each MSL3040 module has two magazines of storage slots that can be removed from the front of the
library. Each magazine has 20 storage slots for tape cartridges.
The following illustration shows the slot numbers for all of the slots in the magazines.
The mailslot is in the right magazine. When enabled, the mailslot takes the place of storage slots 36-40.
MSL3040 power supply LEDs 13
