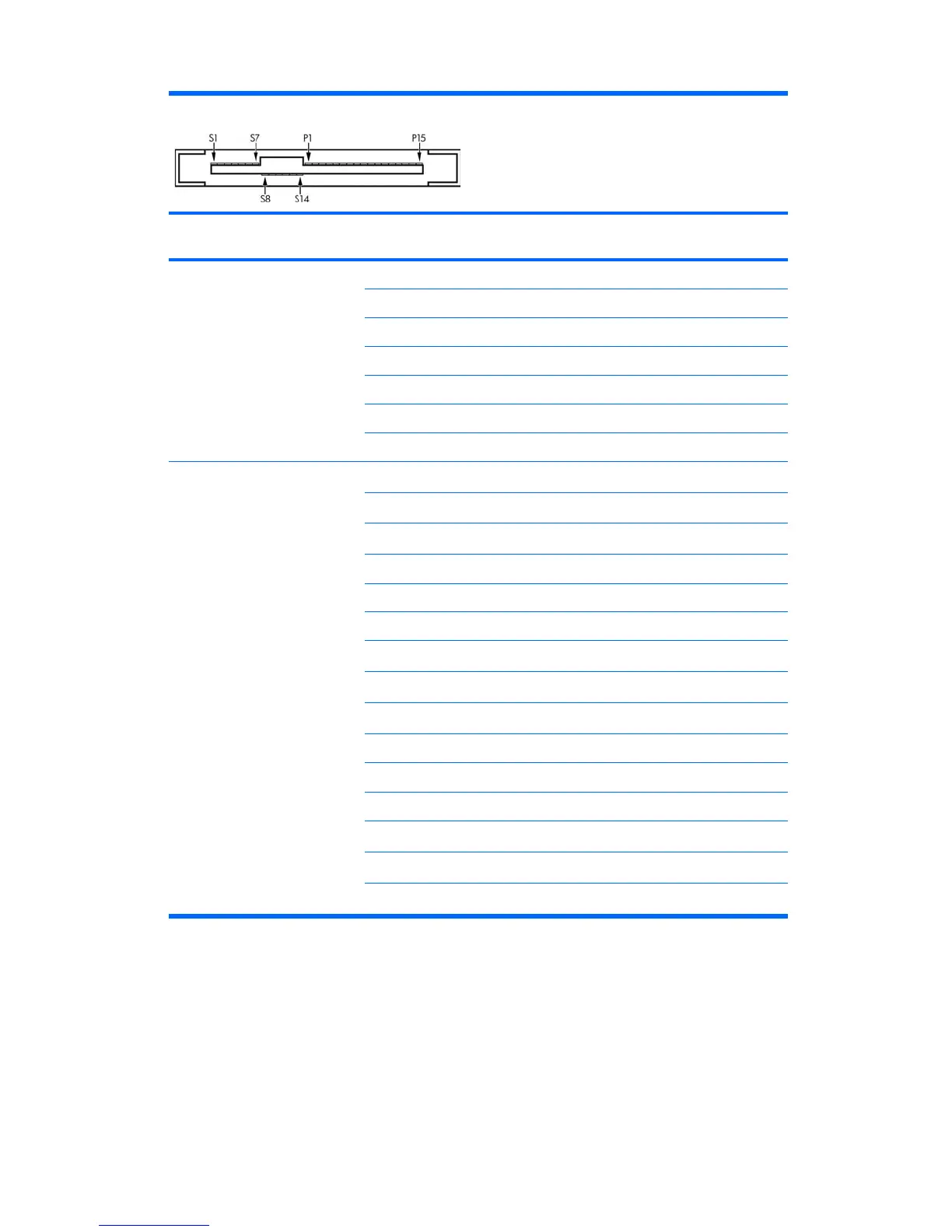

SAS connector
Segment Pin Backplane receptacle Plug and cable
receptacles
Secondary signal segment
S8 SIGNAL GROUND
S9
TS+ RS+
S10 TS- RS-
S11 SIGNAL GROUND
S12
RS- TS-
S13 RS+ TS+
S14 SIGNAL GROUND
Power segment P1
V
33
c
P2
V
33
c
P3
V
33
c
precharge
c
P4 GROUND
P5 GROUND
P6 GROUND
P7
V
5
c
precharge
c
P8
V
5
c
P9
V
5
c
P10 GROUND
P11
READY LED
d
P12 GROUND
P13
V
12
precharge
c
P14
V
12
c
P15
V
12
c
ENWW Connector pin descriptions 155

HP xw6400 Specifications

General

Chipset	Intel 5000X
Storage	SATA or SAS hard drives
Power Supply	650W
Memory	Up to 16 GB DDR2
Expansion Slots	2 PCIe x16
Network	Integrated Gigabit Ethernet
Operating System	Windows XP Professional
Graphics	NVIDIA Quadro FX series
