2. Route the diskette drive data cable between the system board and the hard drive cage. Your cable
might look different than the one shown.
CAUTION The cable must stay between the system board and the hard drive cage. It might
be necessary to push the cable down so that it catches on the system board. This routing
method is important because you do not want to interfere with the CPU heatsink fans or
block airflow.

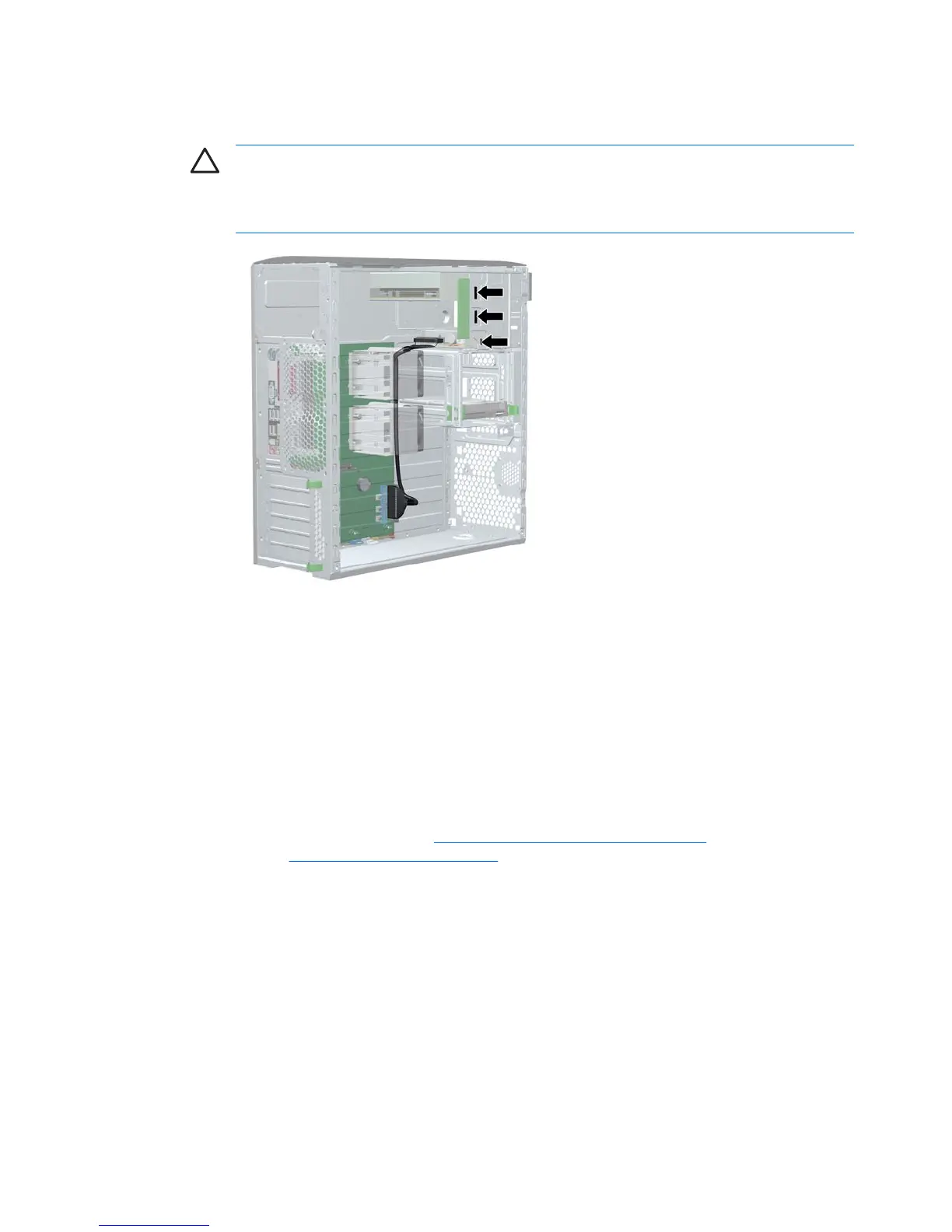

Figure 4-38 Routing the diskette drive cable to the system board
3. Connect the cables to the back of the diskette drive.
Hard drive
Replacing a hard drive
For more information on SATA hard drives and the SATA RAID configuration, see Appendix B, “SATA
Devices.”
Removing a hard drive
1. Disconnect power from the system (
Predisassembly procedures on page 57) and remove the side
access panel (
Side access panel on page 63).
2. Disconnect the cables 1 from the hard drive.
88 Chapter 4 Removal and replacement procedures ENWW
