Rear panel components

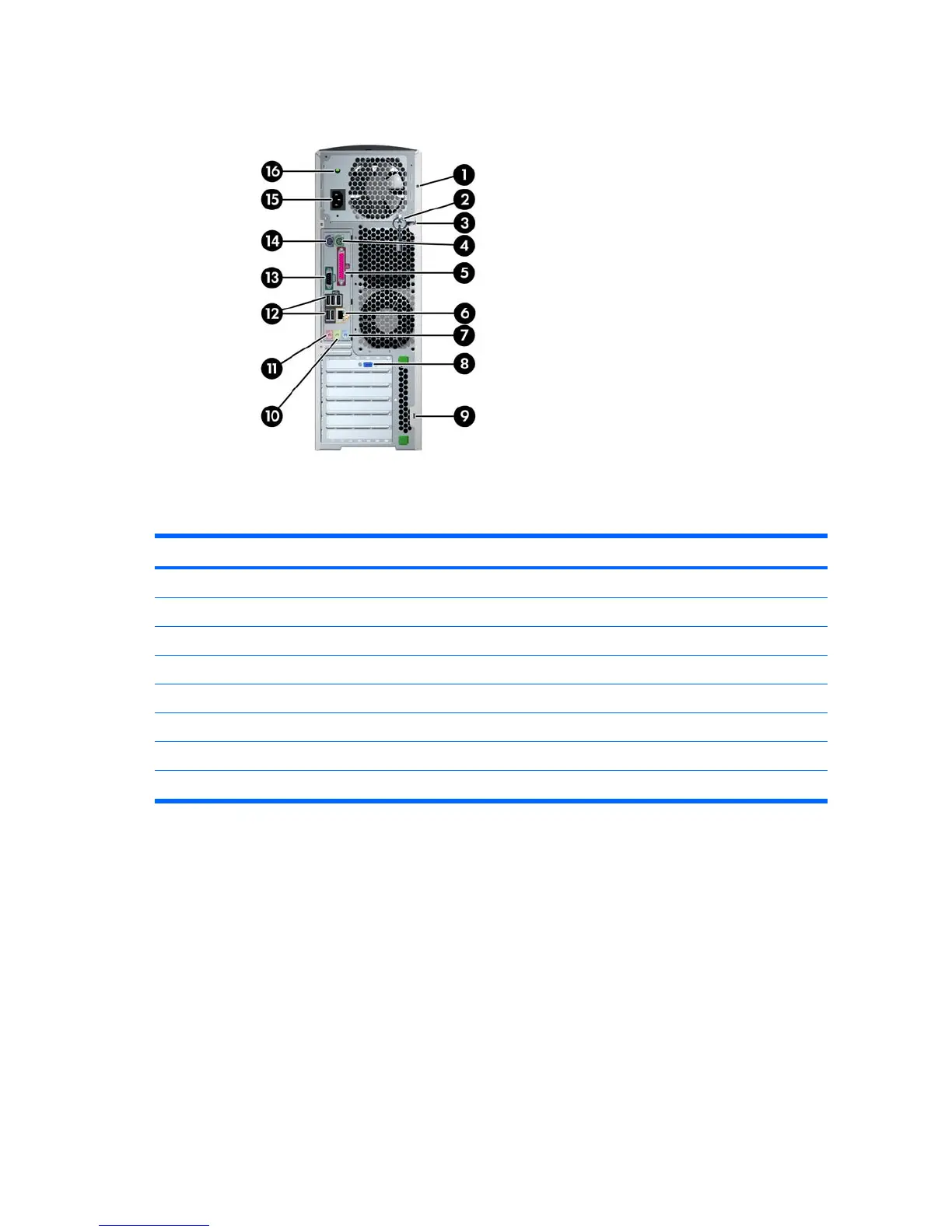

Figure 1-3 Rear panel components
Table 1-3 Rear panel components
Item Description Item Description
1 Universal chassis clamp slot 9 Cable lock slot
2 Side access panel key 10 Audio line-out connector (lime)
3 Padlock or cable loop 11 Microphone connector (pink)
4 PS/2 mouse connector (green) 12 USB connectors (5)
5 Parallel connector (burgandy) 13 Serial connector (teal)
6 RJ-45 network connector 14 PS/2 keyboard connector (purple)
7 Audio line-in connector (light blue) 15 Power cord connector
8 Graphics adapter 16 Built-In Self Test (BIST) LED
The rear panel connectors are labeled with industry-standard icons and colors to assist you in connecting your peripheral
devices.
Serial number and COA label location
Each workstation has two unique serial number labels. The serial number labels 1 are located on the
side panel of the unit and on the rear panel 2. Keep this number available when contacting customer
service for assistance. Systems preinstalled with Microsoft® Windows® XP also have a certificate of
authentication (COA) label 2.
4 Chapter 1 Product overview ENWW
