HP xw6400 User Manual

PCI bus layout and device list
The following illustration shows the HP xw6400 Workstation PCI bus layout. It is followed by a PCI device
list description.

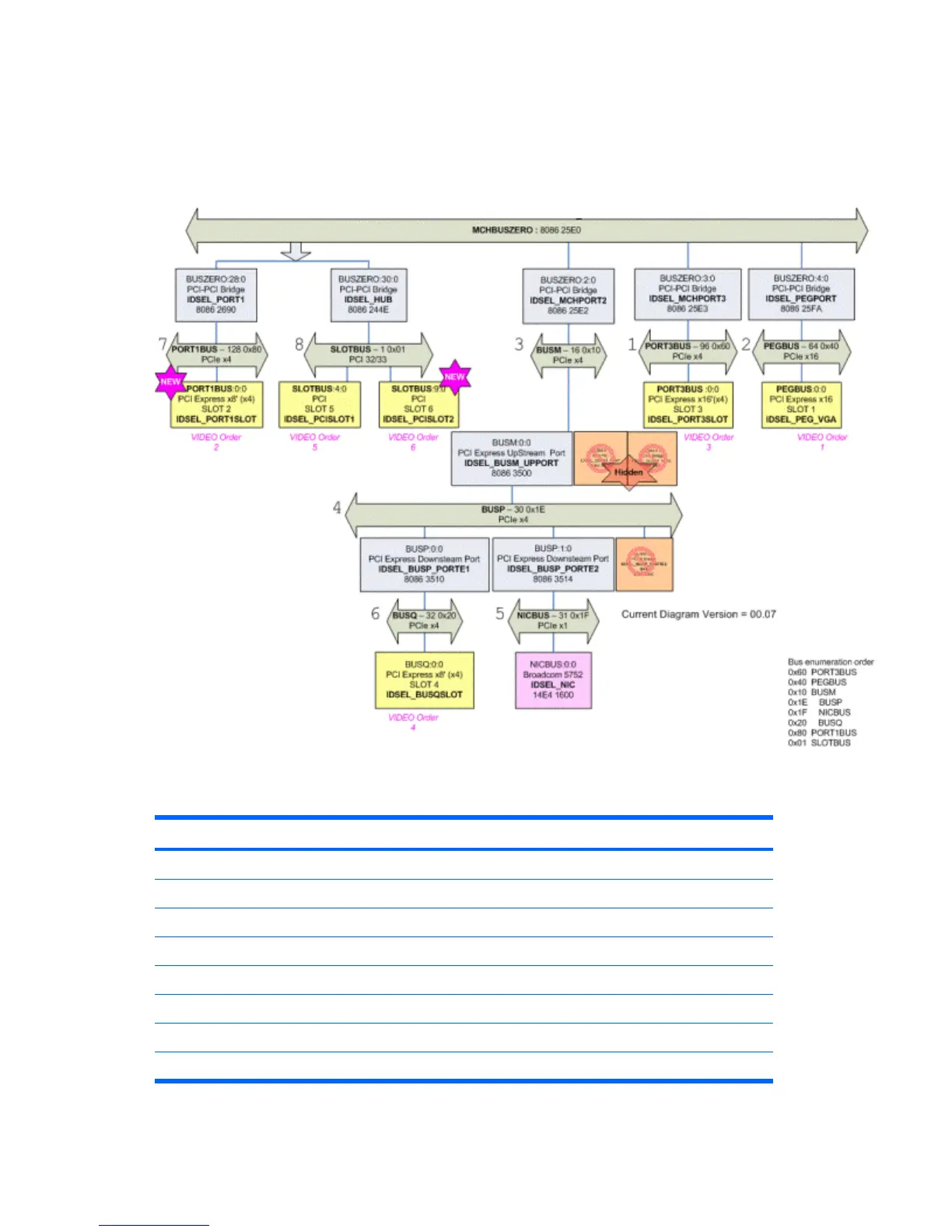

Figure H-1 PCI bus layout
Table H-1 PCI device list
Bus# Dev# Fn# Device#
0 0 0 Port 0, ESI host bridge
0 2 0 Port 2, PCI Express x4 to ESB2 (secondary bus: M)
0 3 0 Port 3, PCI Express x4 (x16') to slot 3 (secondary bus: 96)
0 4 0 Port 4, PCI Express x16 to slot 1 (secondary bus: 64)
0 5 0 Port 5, slave port of port 4
0 6 0 Port 6, slave port of port 4
0 7 0 Port 7, slave port of port 4
0 8 0 Crystal beach DMA controller (unused, hidden)
196 Appendix H Appendix H — PCI bus layout ENWW

HP xw6400 Specifications

General

Chipset	Intel 5000X
Storage	SATA or SAS hard drives
Power Supply	650W
Memory	Up to 16 GB DDR2
Expansion Slots	2 PCIe x16
Network	Integrated Gigabit Ethernet
Operating System	Windows XP Professional
Graphics	NVIDIA Quadro FX series
