3. Pull the processor straight out of the socket.

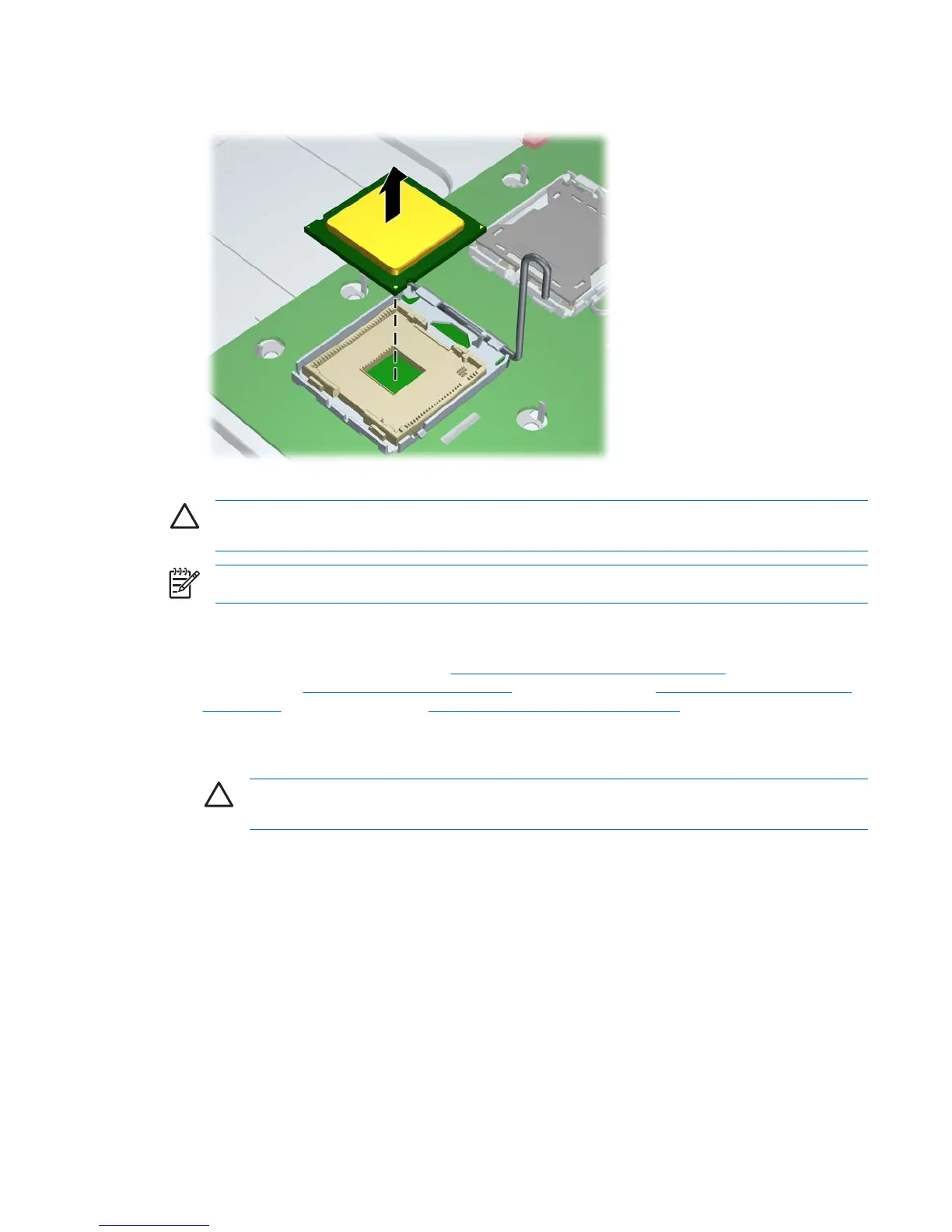

Figure 4-50 Lifting the processor out of the socket
CAUTION To avoid bending the socket pins, keep the processor perfectly flat when removing
or installing it.
NOTE Store the processor in a safe place where it will not be damaged.
Replacing the processor
1. Disconnect power from the system (Predisassembly procedures on page 57), remove the side
access panel (
Side access panel on page 63), the CPU heatsink (Removing the CPU heatsink
on page 91), and the processor (Removing the processor on page 94).
2. Raise the processor socket handle fully (the full swing angle of the lever is approximately 135
degrees).
CAUTION Socket pins are delicate and bend easily. Use extreme care when placing the
processor in the socket to avoid bending pins.
ENWW Removal and replacement of components 95
